Ricoh D014 - Installing the Lift Wire

BOTTOM PLATE LIFT WIRE REPLACEMENT
B475 2 SM
1.1.2 INSTALLING THE LIFT WIRE

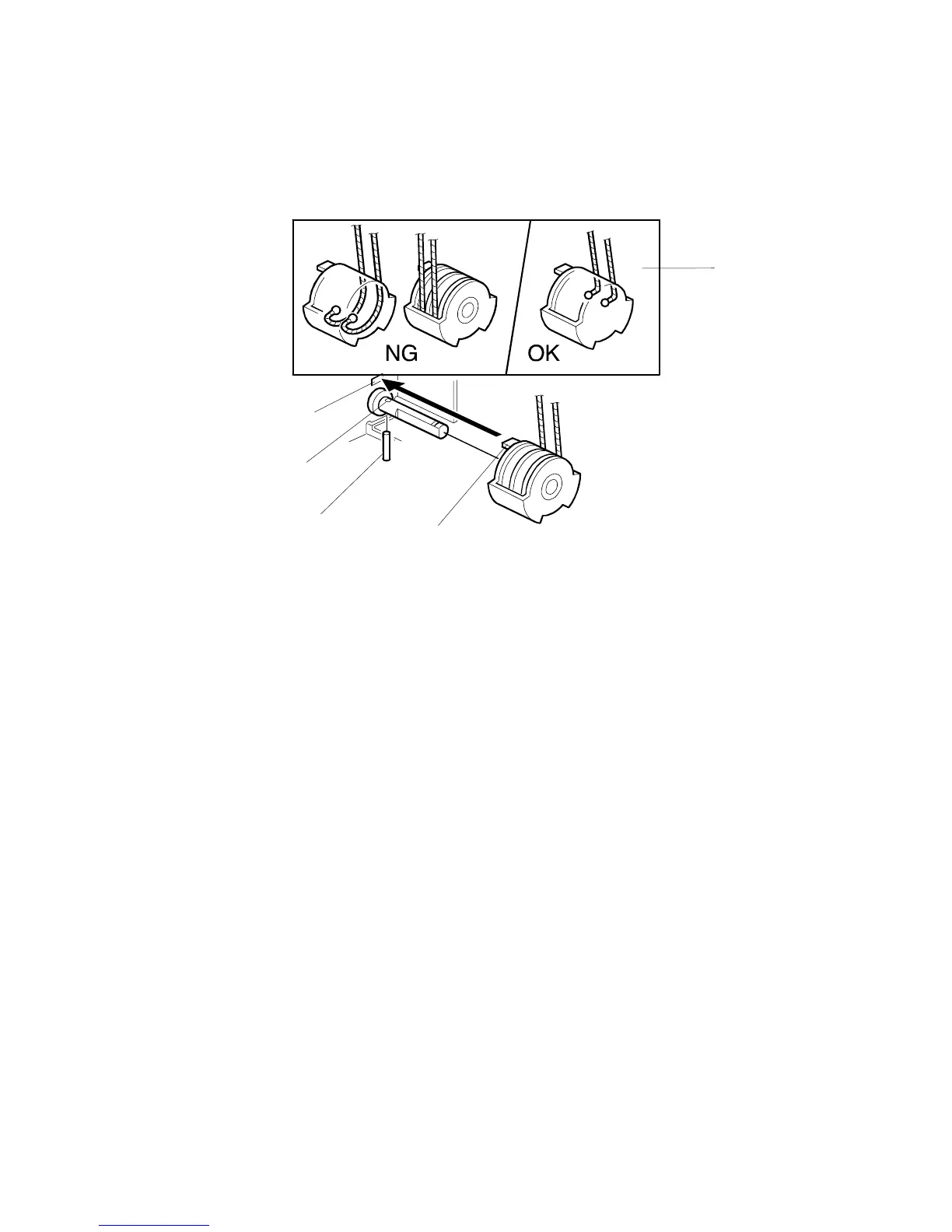

1. Put the positioning pin [A] in hole [B]
2. Fit the projection [C] into slot [D].
3. Attach the wire as shown [E].
NOTE: Make sure that the wires are not crossed.
B475R061.WMF
[E]
[D]
[B]
[A]
[C]
