Laser Unit
D014/D015/D078/D079 3-30 SM
3.3.4 SP ADJUSTMENTS AFTER LASER UNIT REPLACEMENT

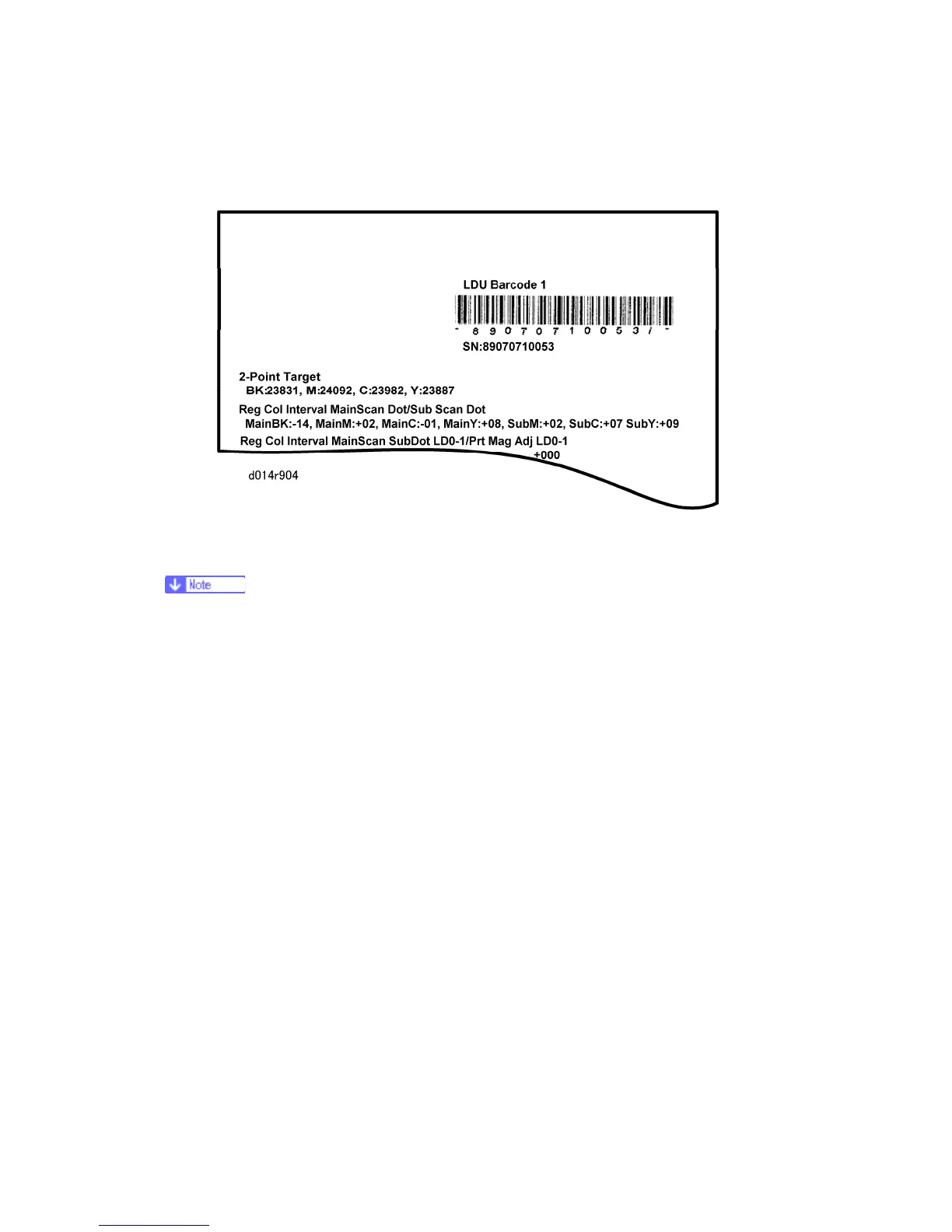

SP codes and settings are written on an A5-size sheet of paper (similar to the sample
above) provided with the laser unit.
 Only the settings described below are required. The other information on the sheet
can be ignored.
1. Enter the values on the first item in the list. These "2-Point Target" values must be
entered after the LD unit has been replaced.
2156-1 (K)
2156-2 (M)
2156-3 (C)
2156-4 (Y)
2. Next, do these SP codes and enter the values for "Prt Mag Adj LD0-1" (listed on Line 3
of the sheet).
2102-5
2102-6
2102-7
2102-8
 The values are in the third item on the list.
 Two values are given for each SP (for example, BK:001 -001). Enter the 2nd value
for each SP code (-001 for BK for example).
