Ricoh D014 - Jogger Fence

REPLACEMENT AND ADJUSTMENT
B830 8 SM
1.3 JOGGER FENCE
1. Open the front door.
2. Pull out the jogger and stapler unit.
3. Push both fences to the center.
4. Remove the left jogger fence [A] ( x 1)
5. Remove the right jogger fence [B] (

x 1).
NOTE: If the screws are difficult to remove or re-attach, remove the jogger
fence belt and spring plate.

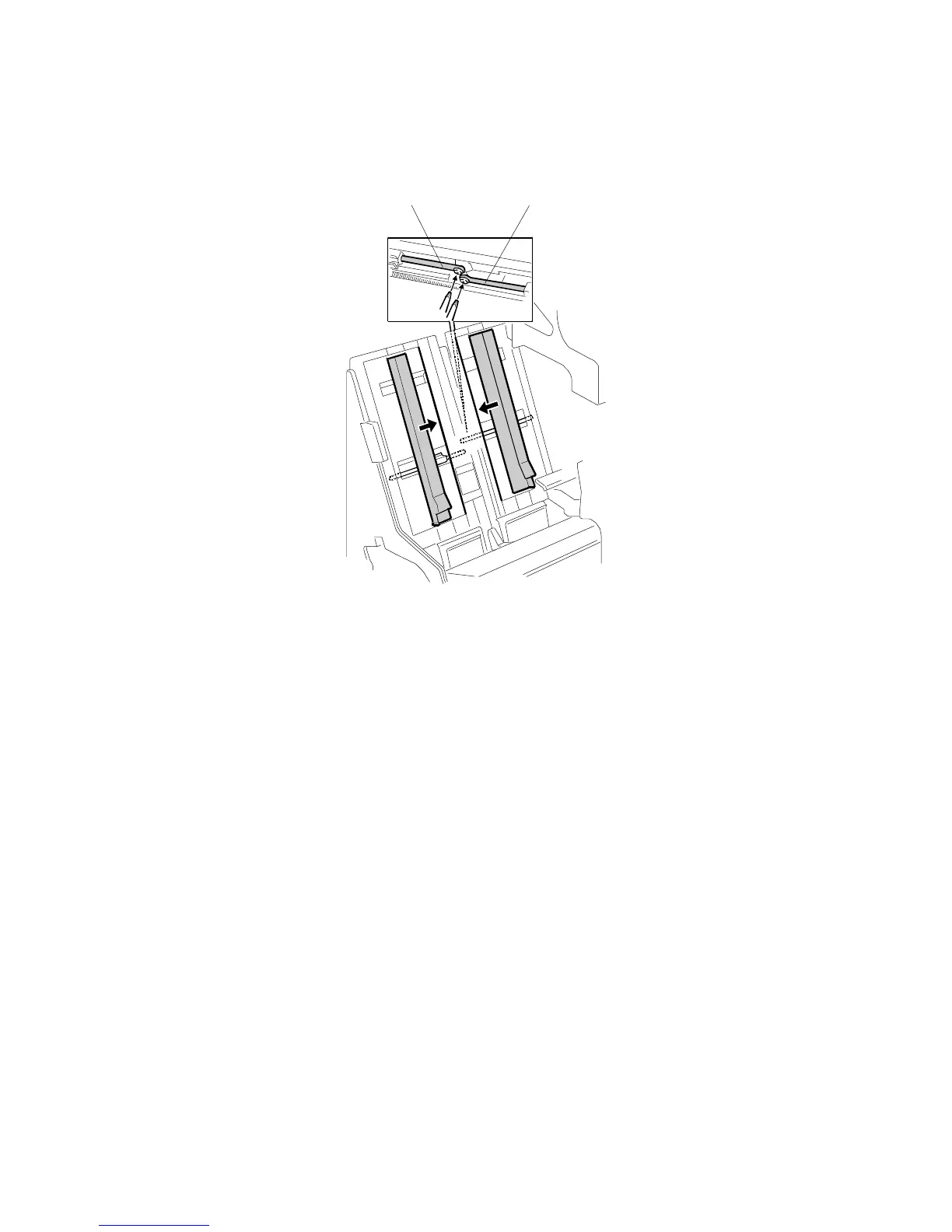

B830R909.WMF
[B]
[A]
