Fusing Unit
SM 3-95 D014/D015/D078/D079
Replacement
Adjustment

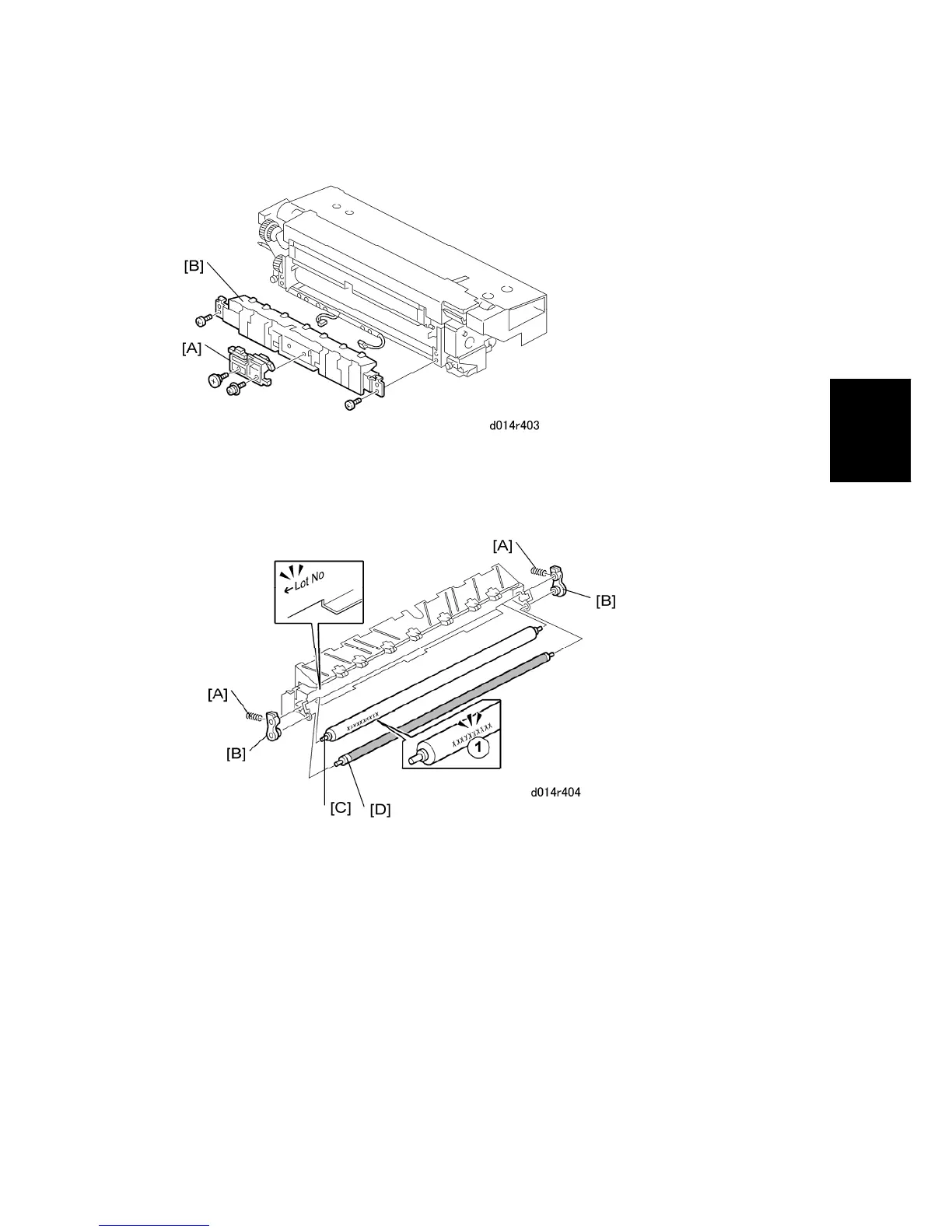

Oil Supply Roller Cleaning Roller, Oil Supply Roller
1. Remove:
[A] Paper exit sensor bracket ( x2, x2)
[B] Paper exit guide ( x2)
2. Remove:
[A] Spring (Front x1, Back x1)
[B] Lock plate (Front x1, Back x1)
[C] Oil supply roller
[D] Oil supply roller cleaning roller
Reinstallation
The end of the oil supply roller with the number { above must be installed at the front
of the fusing cleaning belt unit.
To Next Page
