Ricoh D014 - 3 Details; Upper Tray and Stapler Junction Gates

DETAILS
B830 42 SM
3. DETAILS

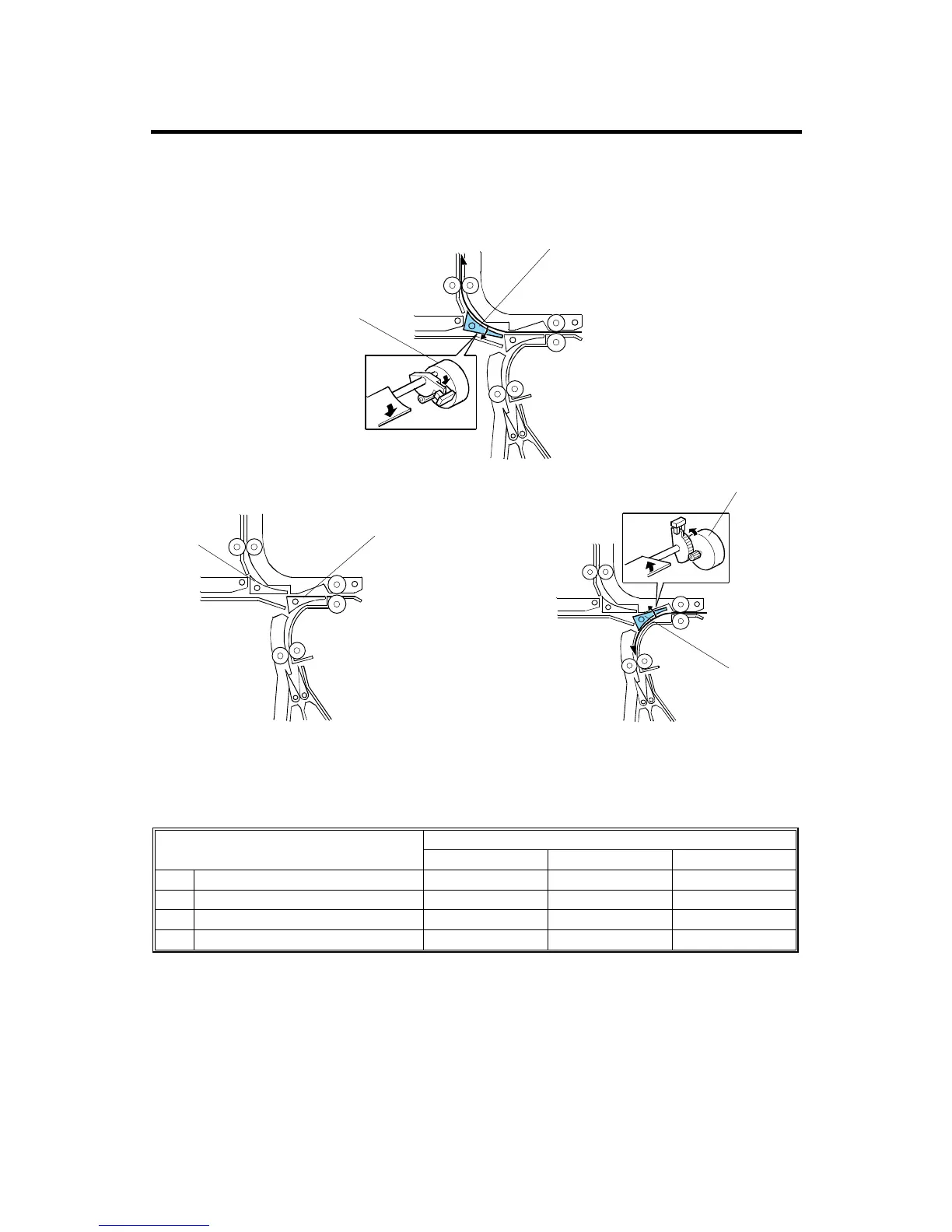

3.1 UPPER TRAY AND STAPLER JUNCTION GATES
Depending on the finishing mode, the copies are directed up, straight through, or
down by the combinations of open and closed junction gates.
Selected Operation Mode
Solenoid/Gate
Upper Tray Sort/Stack Staple
[A] Upper tray junction gate motor ON Off Off
[B] Upper tray junction gate OPEN Closed Closed
[C] Stapler junction gate Closed Closed OPEN
[D] Stapler junction gate motor Off Off ON
B830D506B.WMF
B830D505B.WMF
B830D507B.WMF
[A]
[B]
[B]
[C]
[C]
[D]
Upper Tray Mode
Sort/Stack Mode Staple Mode
