D014/D015/D078/D079 3-132 SM
3.9.6 ITB DRIVE MOTOR
1. Remove the rear covers.
2. Open the controller box door.

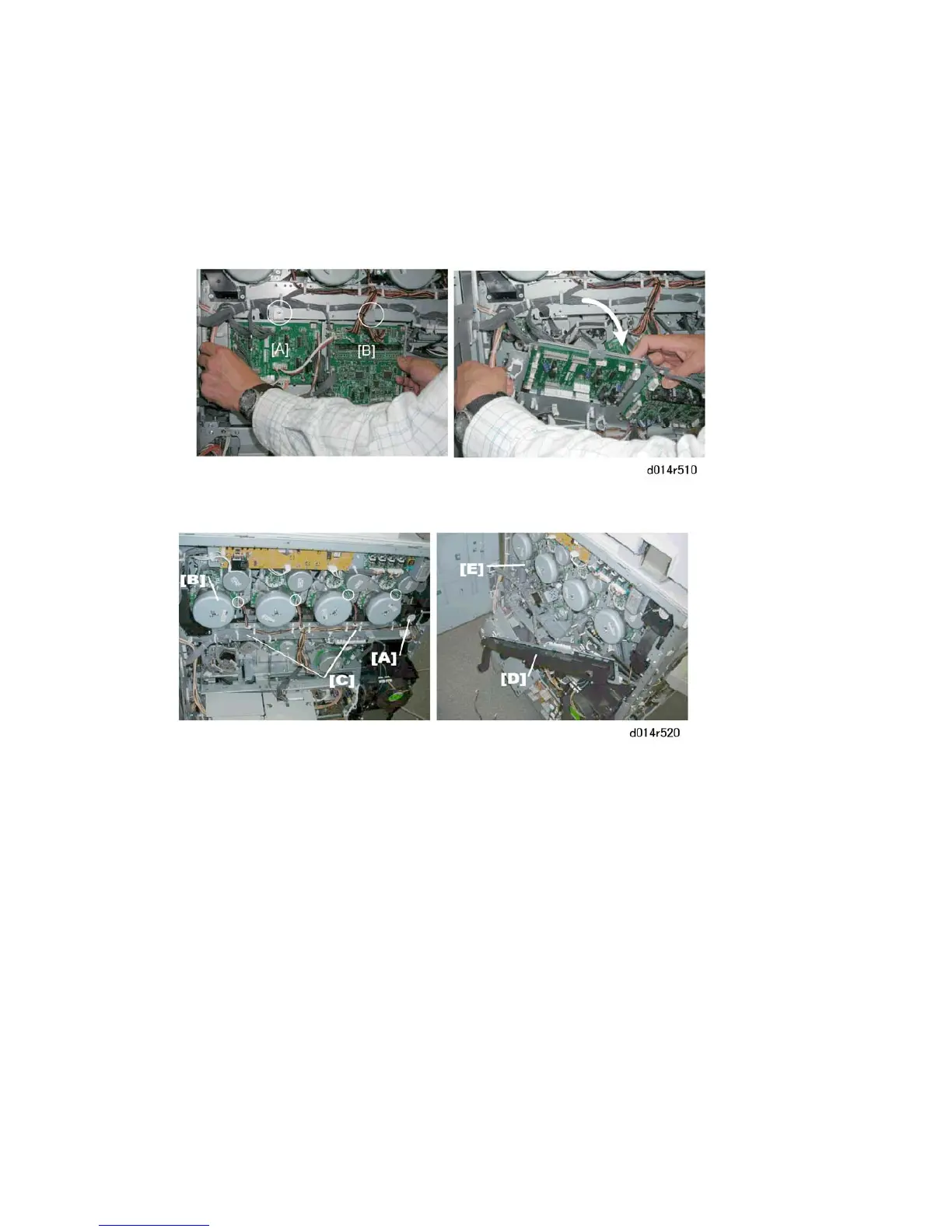

3. Remove the plate that holds the DRB [A] and DTMB [B] (x2, x All)
1. Remove the fan plate with fan [A] attached ( x2).
2. Disconnect the drum motors [B] ( x4).
3. Disconnect the cross-brace [C]. (There are two screws on each end of the
cross-brace.)
