Image Transfer Unit
SM 3-83 D014/D015/D078/D079
Replacement
Adjustment
3.6.4 ITB CLEANING UNIT

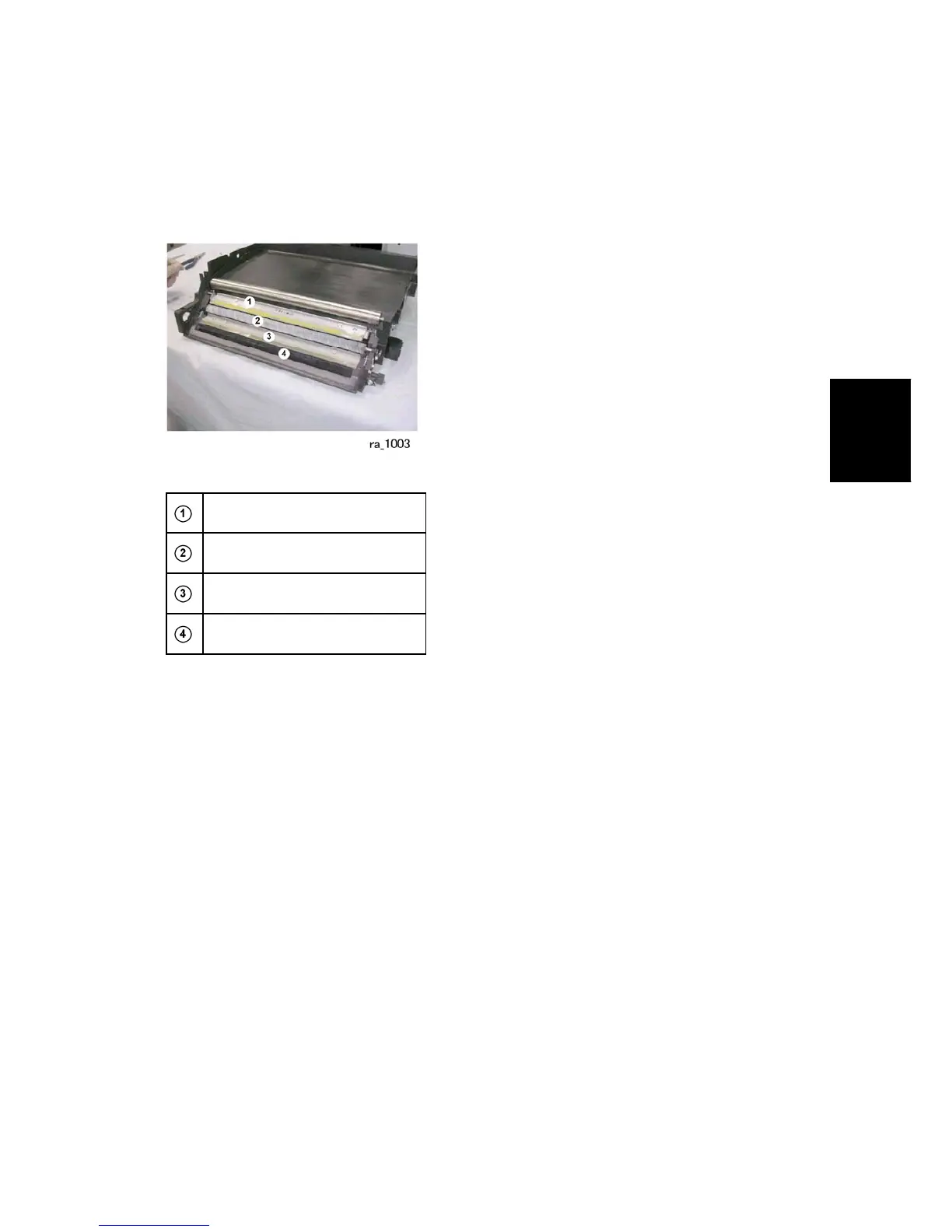

This is the ITB cleaning unit with the belt unit removed.
Lubricant Blade
Lubricant Brush Roller*
1
ITB Cleaning Blade
ITB Brush Cleaning Roller
*
1
A lubricant bar is under the lubricant brush roller.
Before servicing the cleaning unit, please note:
 The lubricant blade { and ITB cleaning blade } are not the same, so they are not
interchangeable.
 The PM interval of the lubricant blade { and lubricant brush roller  pair and the ITB
cleaning blade } and ITB brush cleaning roller ~ pair is the same (300K). These four
items are always replaced together.
