Ricoh D014 - Finisher Entrance Sensor; Pre-Stack Tray Exit Sensor

Main Unit
SM 7 B804/B805/D373/D374
Booklet
Finisher/
Finisher
B804/B805/
D373/D374

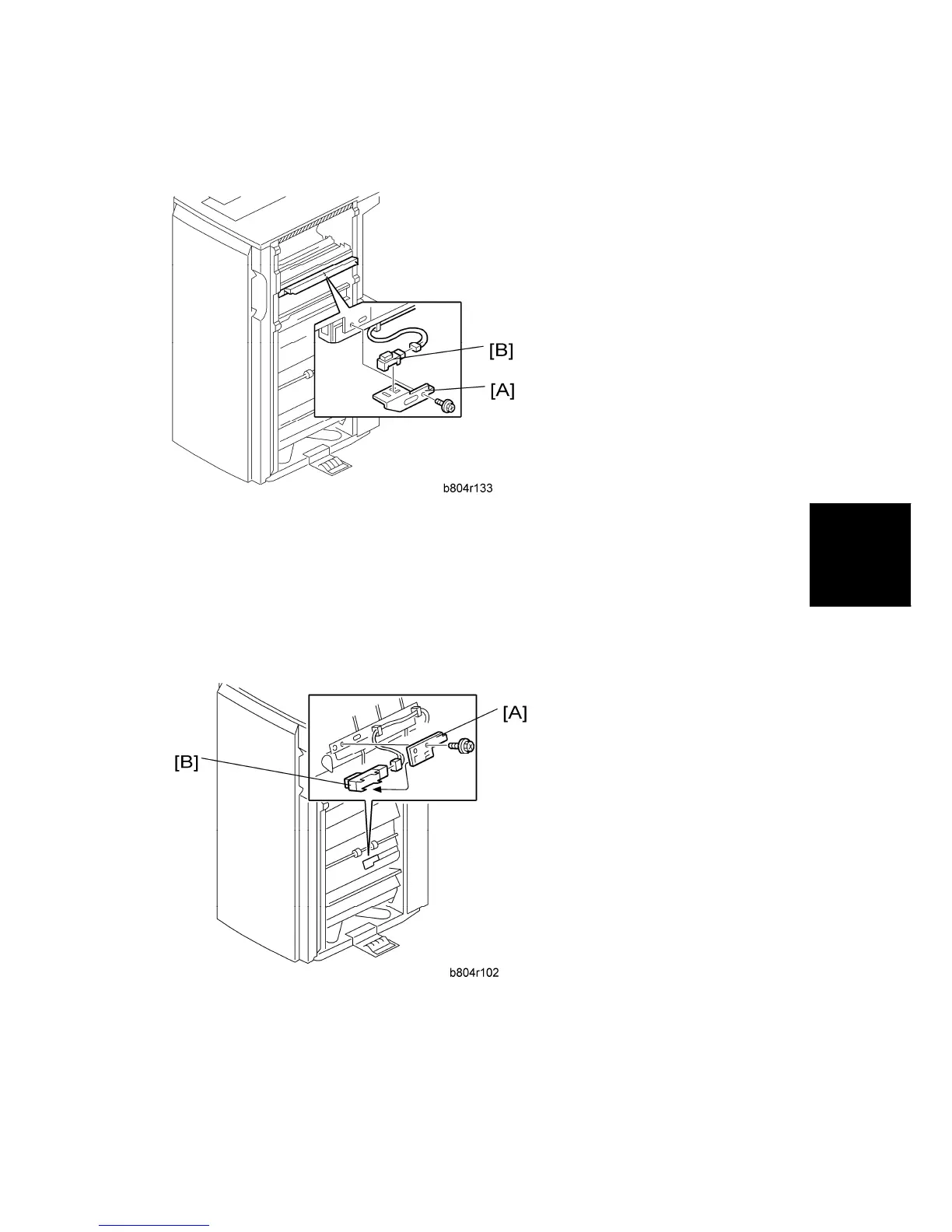

1.2.7 FINISHER ENTRANCE SENSOR
1. Disconnect the finisher if it is connected to the copier.
2. Sensor bracket [A] ( x1)
3. Finisher entrance sensor [B] (S1) ( x1)
1.2.8 PRE-STACK TRAY EXIT SENSOR
1. Disconnect the finisher if it is connected to the copier.
2. Sensor bracket [A]
3. Pre-stack tray exit sensor [B] (S2)
