PCU
D014/D015/D078/D079 3-40 SM
Lubricant Bar and Lubricant Blade
Preparation
Remove the PCU
Separate the development unit and drum unit.
Remove the drum, cover it with a piece of clean paper, and set it aside.

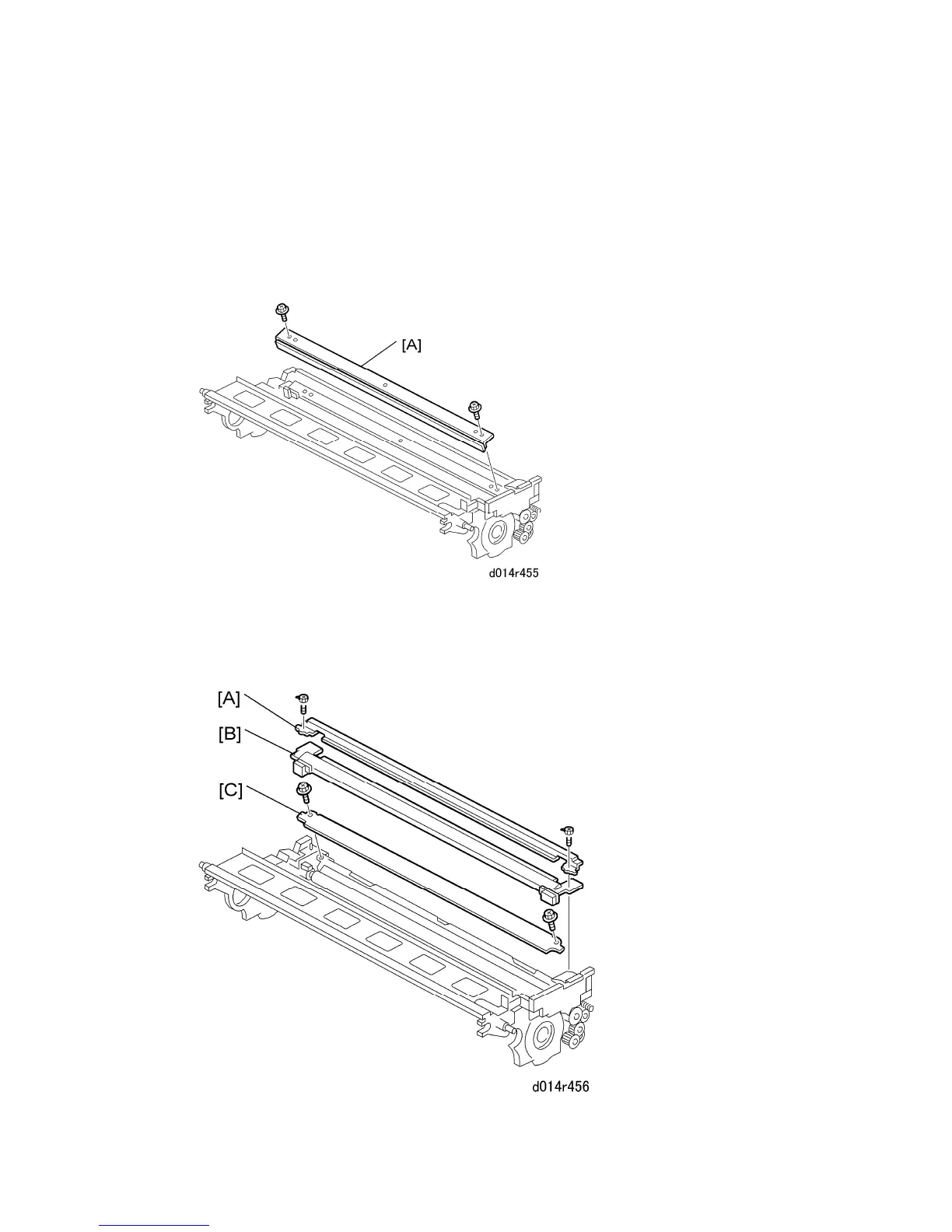

1. Remove the lubricant blade ( x2).
2. Remove the screws from the ends of the lubricant bar unit [A] ( x2).
To Next Page
