Ricoh D014 - Potential Sensor Postion; Potential Sensors

Differences Between the D014/D015 & B132/B200
D014/D015/D078/D079 D-28 SM
POTENTIAL SENSORS

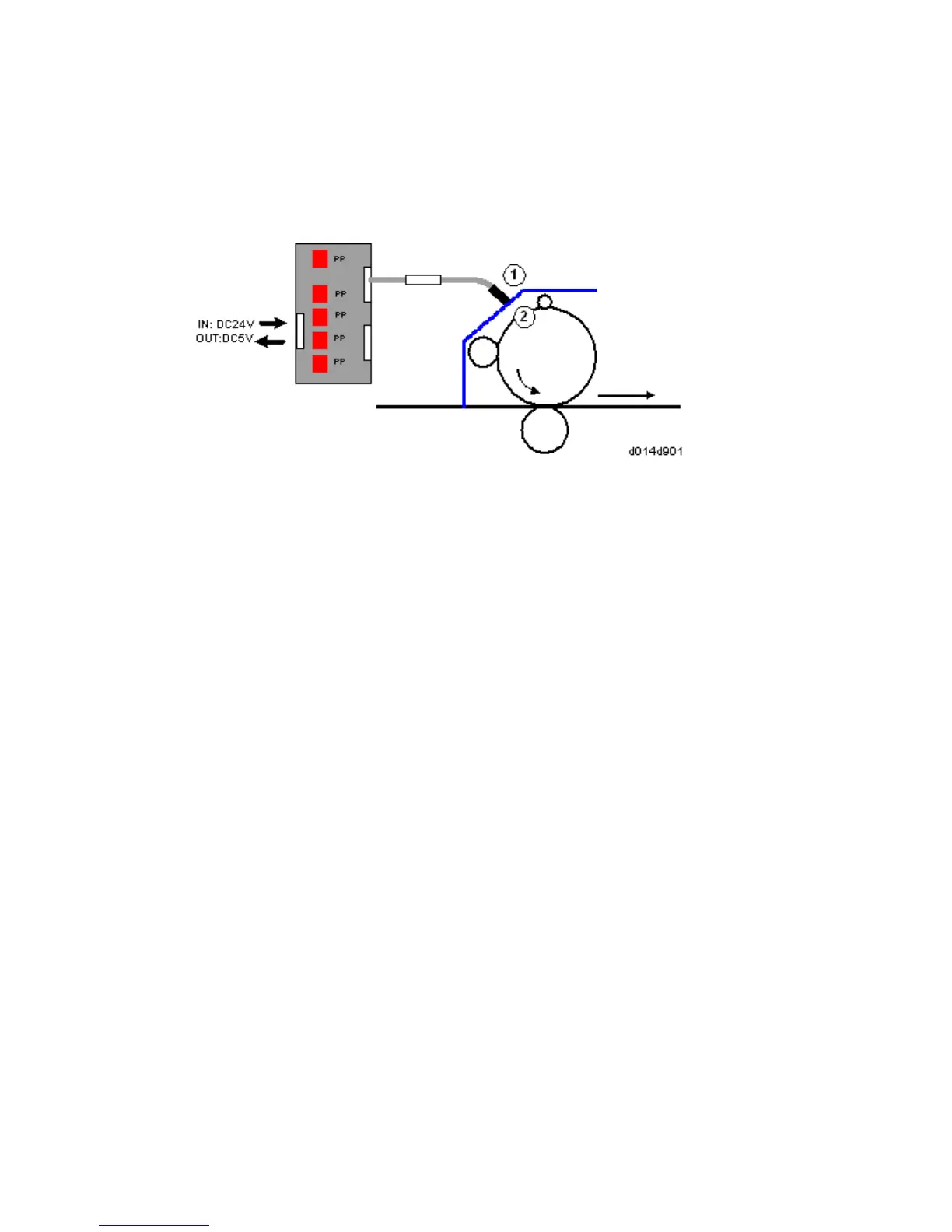

Potential Sensor Postion
The drum potential sensors (x4) no longer reside inside the PCUs. They are attached to the
main machine { just above each PCU |. This new arrangement keeps the potential
sensors free of toner and dust during servicing.
