Common Procedures
D350 2 SM
1.1.2 COVERS
Before You Begin…
The frame is held together by 8 blue screws.
To avoid weakening or warping the shape of the frame, never remove these blue
screws.
The upper inner cover must be removed before the top cover.

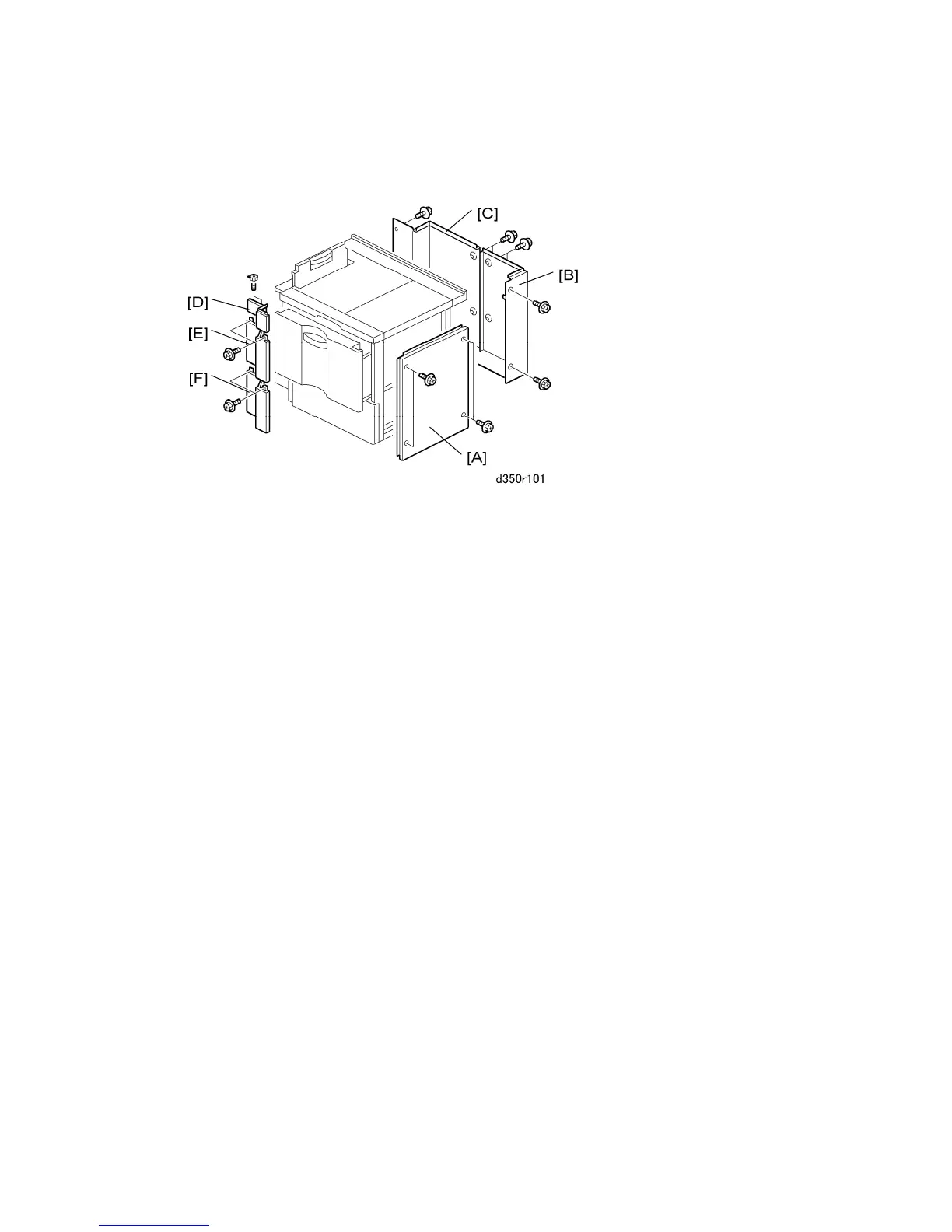

1. Remove:
[A] Right cover ( x 4)
[B] Right rear cover ( x 4)
[C] Left rear cover ( x 5)
[D] Top front cover ( x 2)
[E] Middle front cover ( x 2)
[F] Bottom front cover ( x 2)
To Next Page
