Cover Interposer T
ray (B704)
D014/D015/D078/D079 1-122
SM
Docking the Finisher/Interposer with the Machine
1.

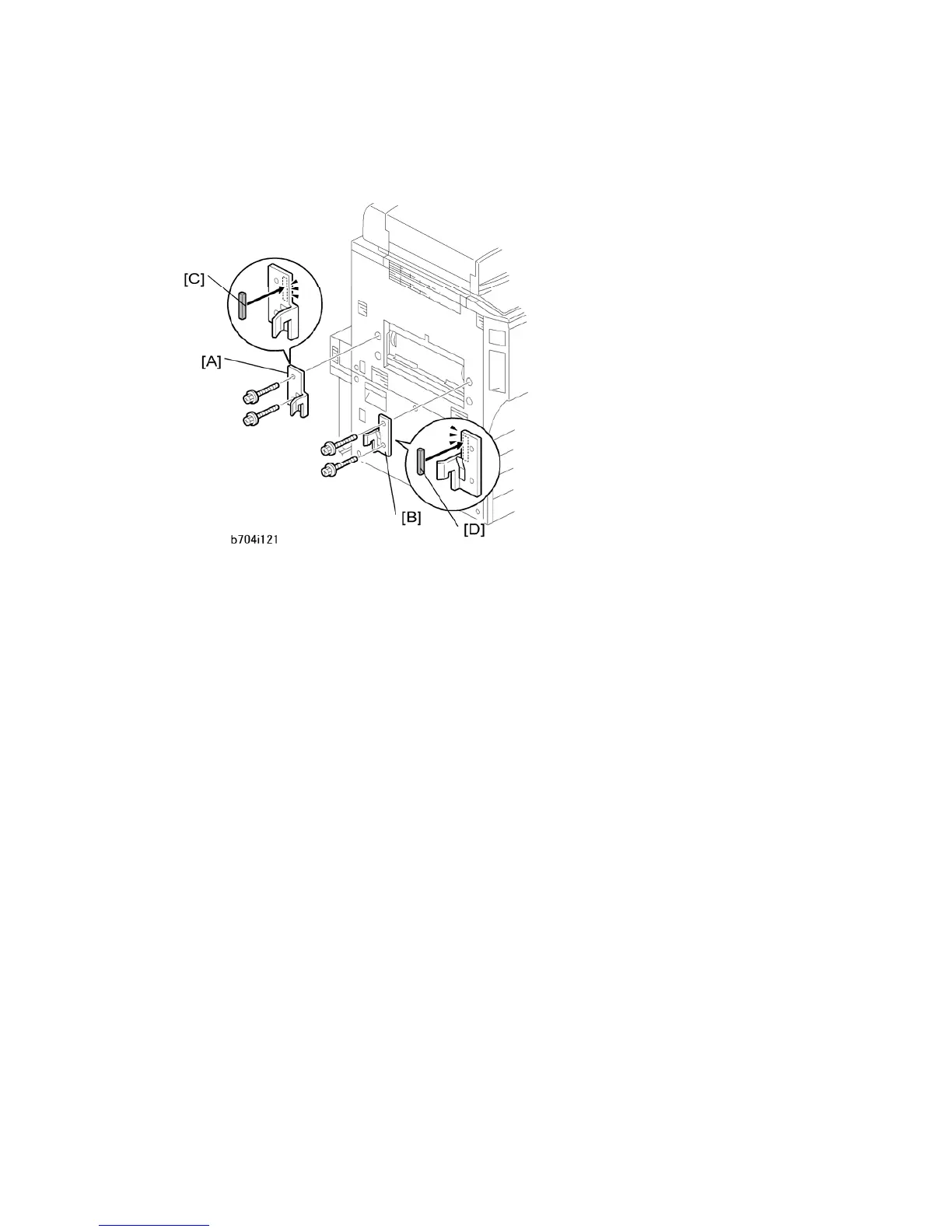

Attach the rear bracket [A] (
x 2, M4 x14).
2.
Attach the front bracket [B] (
x 2, M4 x14).
3.
Attach the gasket
seals [C] and [D].
