Common Procedures
D014/D015/D078/D079 3-6 SM
3.2 COMMON PROCEDURES

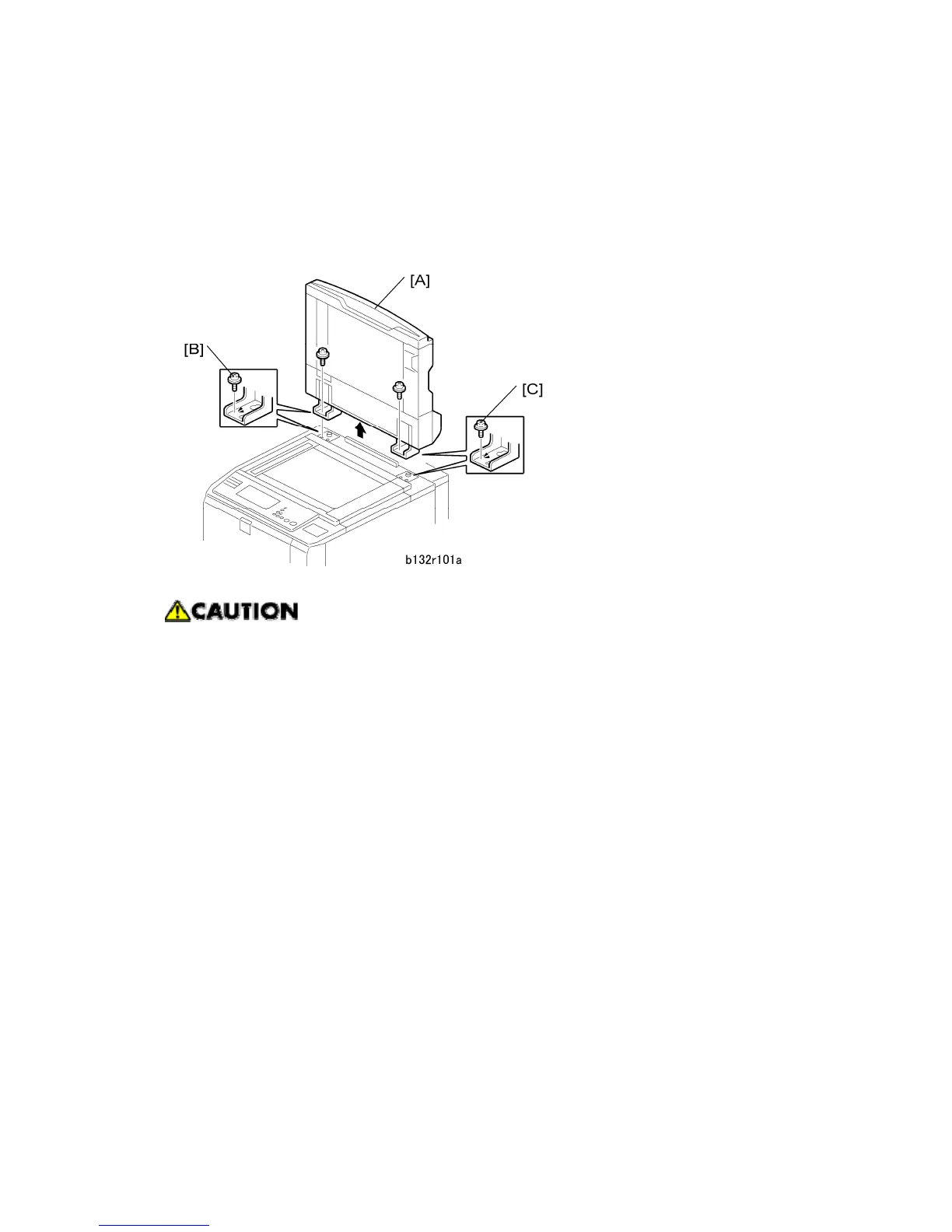

3.2.1 ARDF
The ARDF is very heavy.
1. Raise the ARDF [A] to the vertical position.
2. At the rear left corner of the machine, disconnect the ARDF cable.
3. Remove the left screw [B] and right screw [C].
4. Slide the ARDF back until the heads of the screws are in the large end of the keyholes,
then lift the ARDF off the machine.
