Ricoh D014 - Fold Timing Sensor

REPLACEMENT AND ADJUSTMENT
B660 6 SM
1.6 FOLD TIMING SENSOR

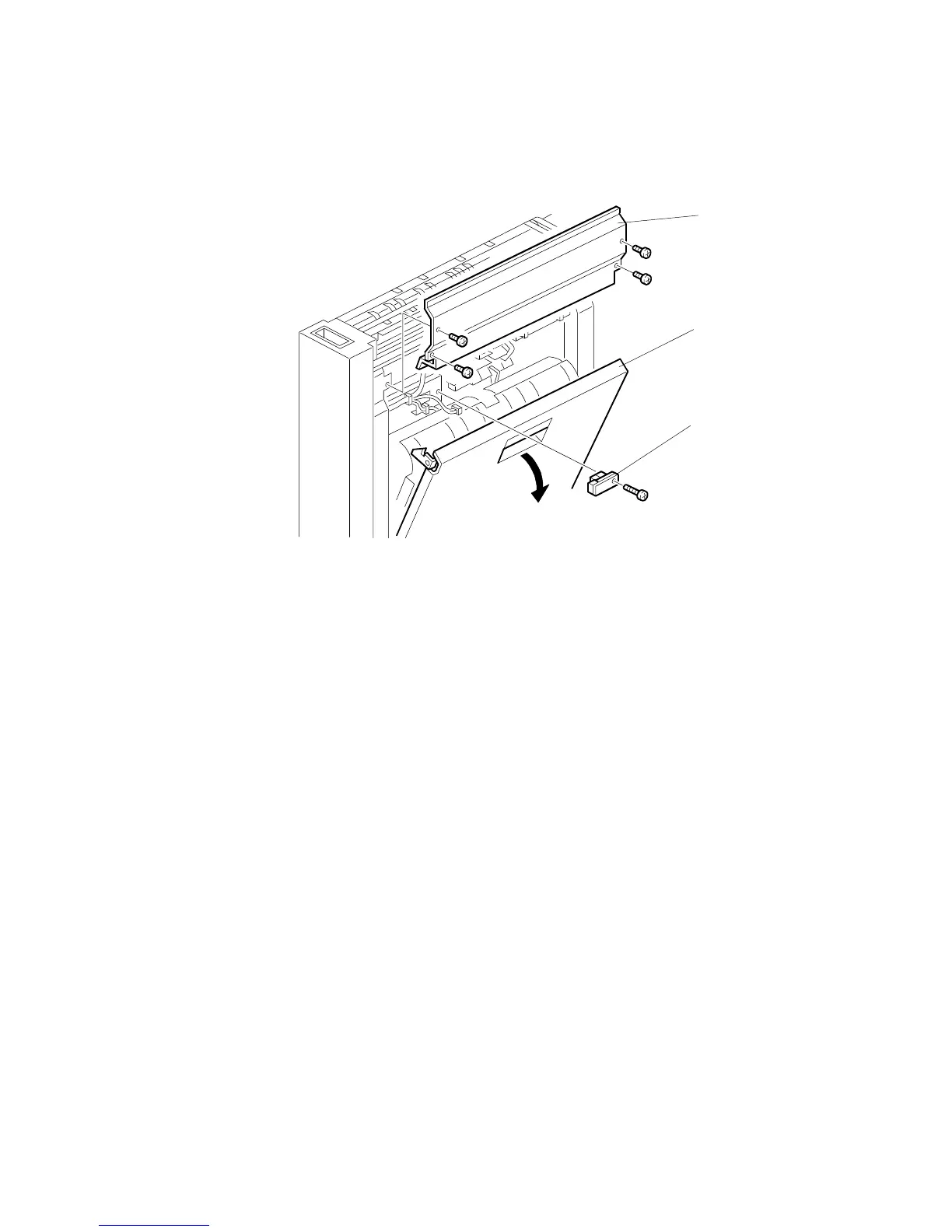

Pull the Z-fold mechanism out of the unit.
[A]: Open the right vertical transport unit cover.
[B]: Plate ( x 4)
[C]: Fold timing sensor (

x 1,

x 1)
B660R105.WMF
[A]
[B]
[C]
