Fusing Unit
SM 6-95 D014/D015/D078/D079
Detailed
Descriptions

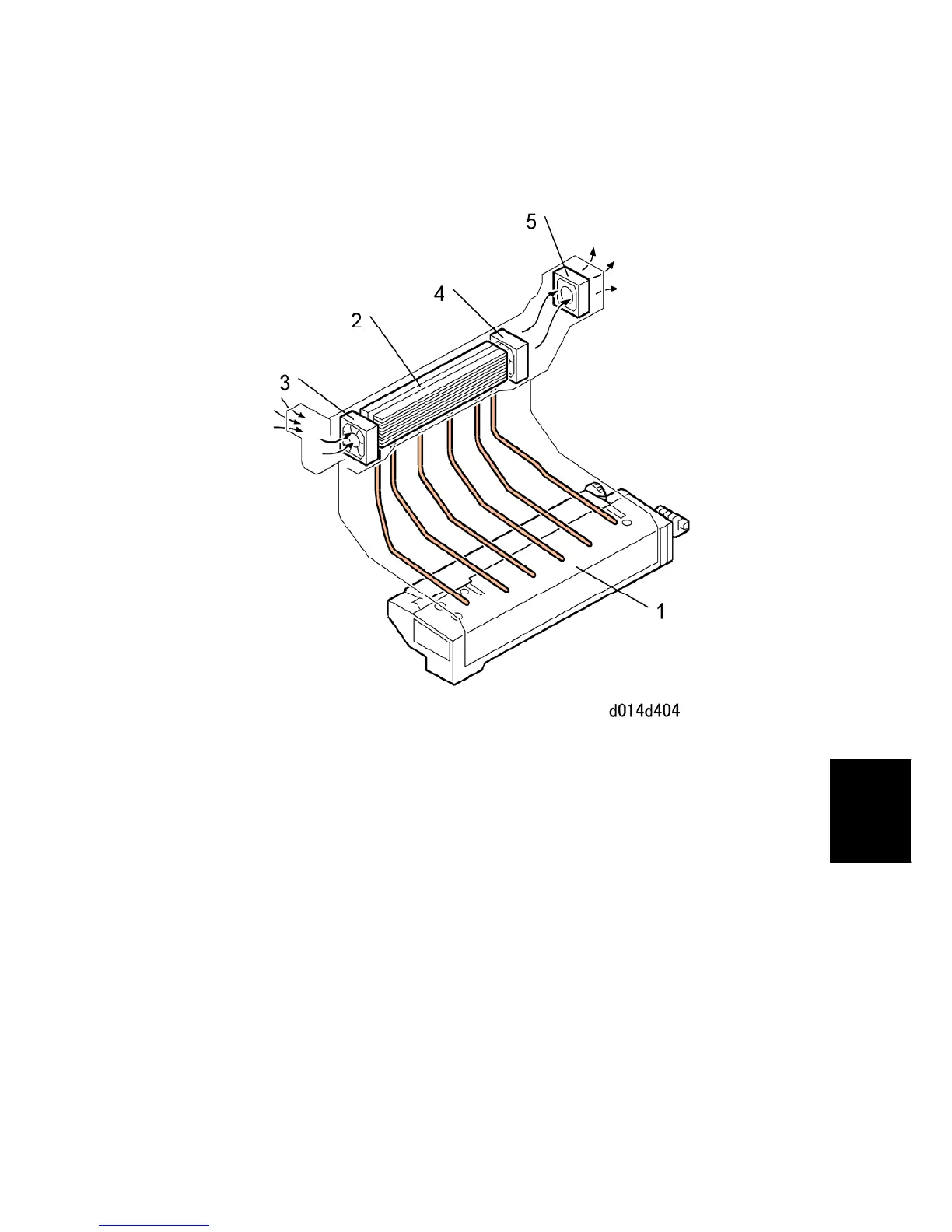

6.10.7 FUSING UNIT VENTILATION
1. Fusing Unit
2. Heat Sink
3. Intake Fan
4. Exhaust Fan 1
5. Exhaust Fan 2
Heat from the fusing unit [1] is drawn off by the pipes and collects in the heat sink [2]. The
fusing unit intake fan [3] draws in cool air and blows it through the laminations of the heat
sink. The first exhaust fan [4] draws the heated air out of the heat sink. The second exhaust
fan [5] takes the hot air and blows it out of the machine.
