LCIT RT4000 (D350)
D014/D015/D078/D079 1-72 SM
Installation Procedure for 240V
1. Confirm that the heater unit is the correct type for the machine:
120V Model: Both connector harnesses are WHITE. (Do not use for this
installation.)
208V-240V Model: Both connector harnesses are RED. (Use for this installation.)

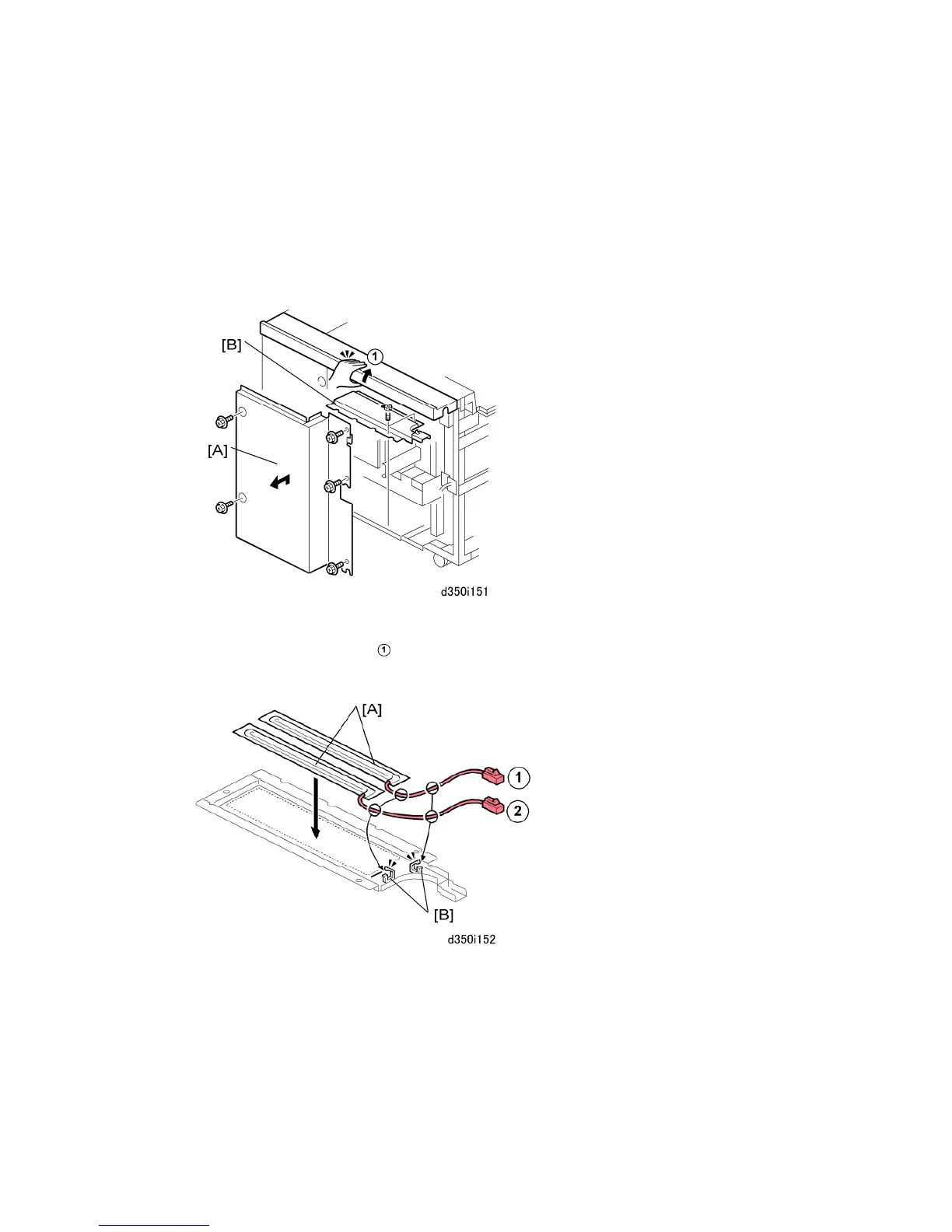

2. At the back of the LCIT, remove:
[A] Rear cover ( x5). Lift
to remove rear cover.
[B] Heater cover ( x2)
3. Remove the seals from the bottom of the heater units [A] and attach the heaters to the
heater cover.
4. Confirm that the heaters are not touching or overlapping.
5. Route both harnesses through the clamps [B] and fasten the clamps.
