Ricoh D014 - Lubricant Blade; Lubricant Brush Roller, Lubricant Bar

Image Transfer Unit
D014/D015/D078/D079 3-84 SM

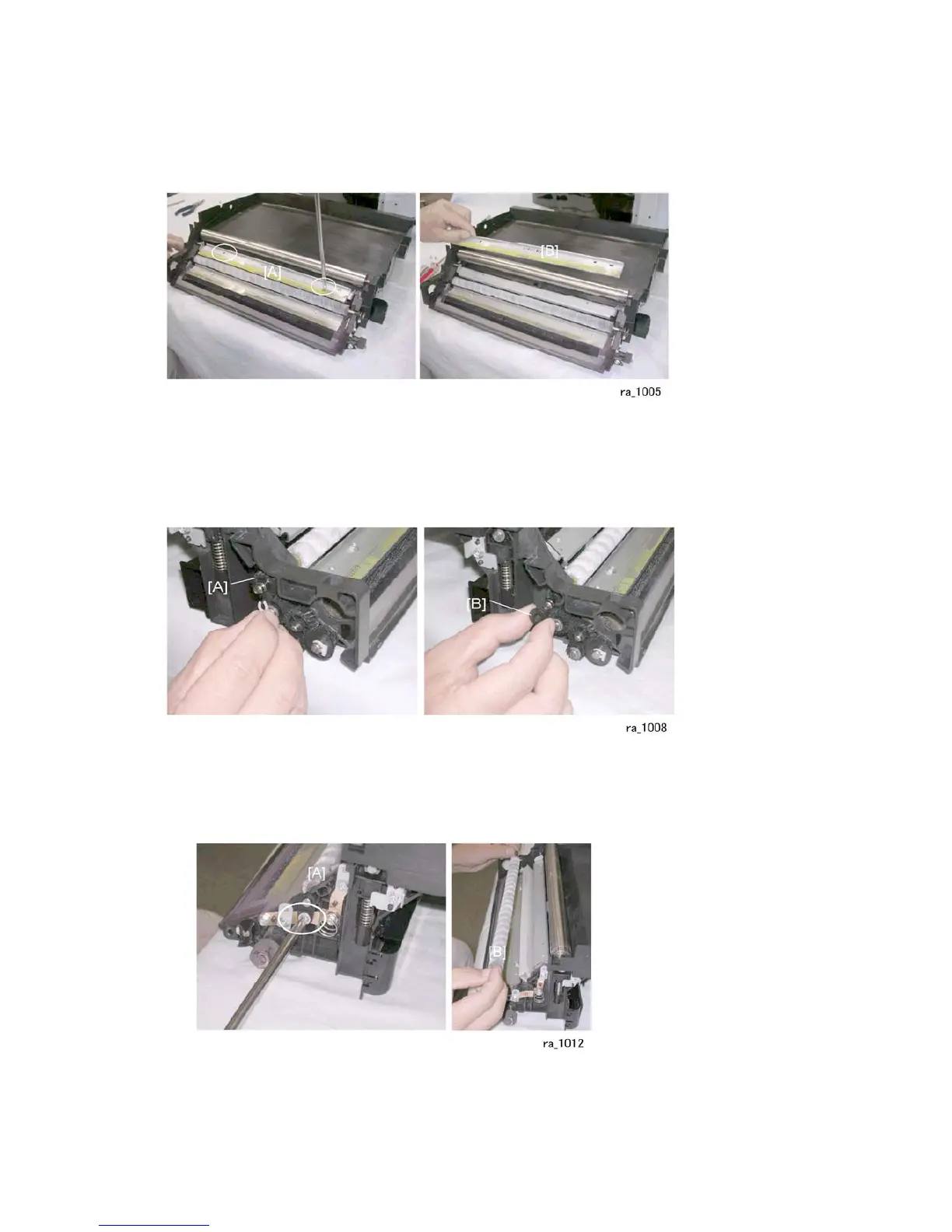

Lubricant Blade
1. Remove the screws of the lubricant blade [A] ( x2).
2. Remove the lubricant blade [B].
Lubricant Brush Roller, Lubricant Bar
1. At the back, remove:
[A] Gear ( x1)
[B] Coupling
2. At the front, remove screw [A] ( x1).
