Stapler Unit
SM 9 B804/B805/D373/D374
Booklet
Finisher/
Finisher
B804/B805/
D373/D374

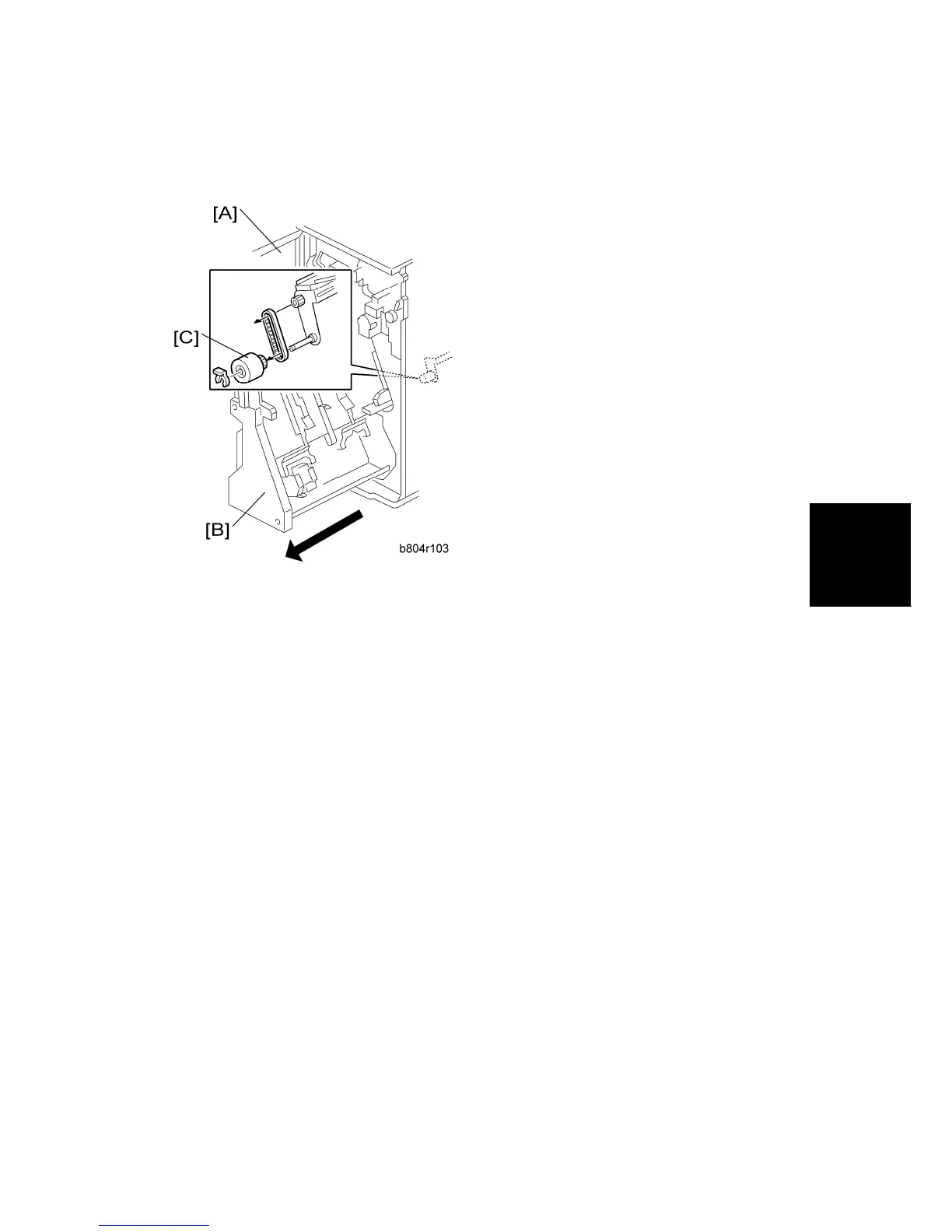

1.3.2 POSITIONING ROLLER
1. Open the front door [A].
2. Pull out the stapling unit [B].
3. Positioning roller [C] ( x1, timing belt x1)
