Ricoh D014 - Fusing Belt Strippers; Fusing Cleaning Unit

Fusing Unit
SM 3-93 D014/D015/D078/D079
Replacement
Adjustment
3.7.2 FUSING CLEANING UNIT
Fusing Belt Strippers
Preparation
 Remove the fusing unit from the machine.
 Allow the unit to cool for at least 10 minutes.
 Raise D2 to a 45
o
slant.

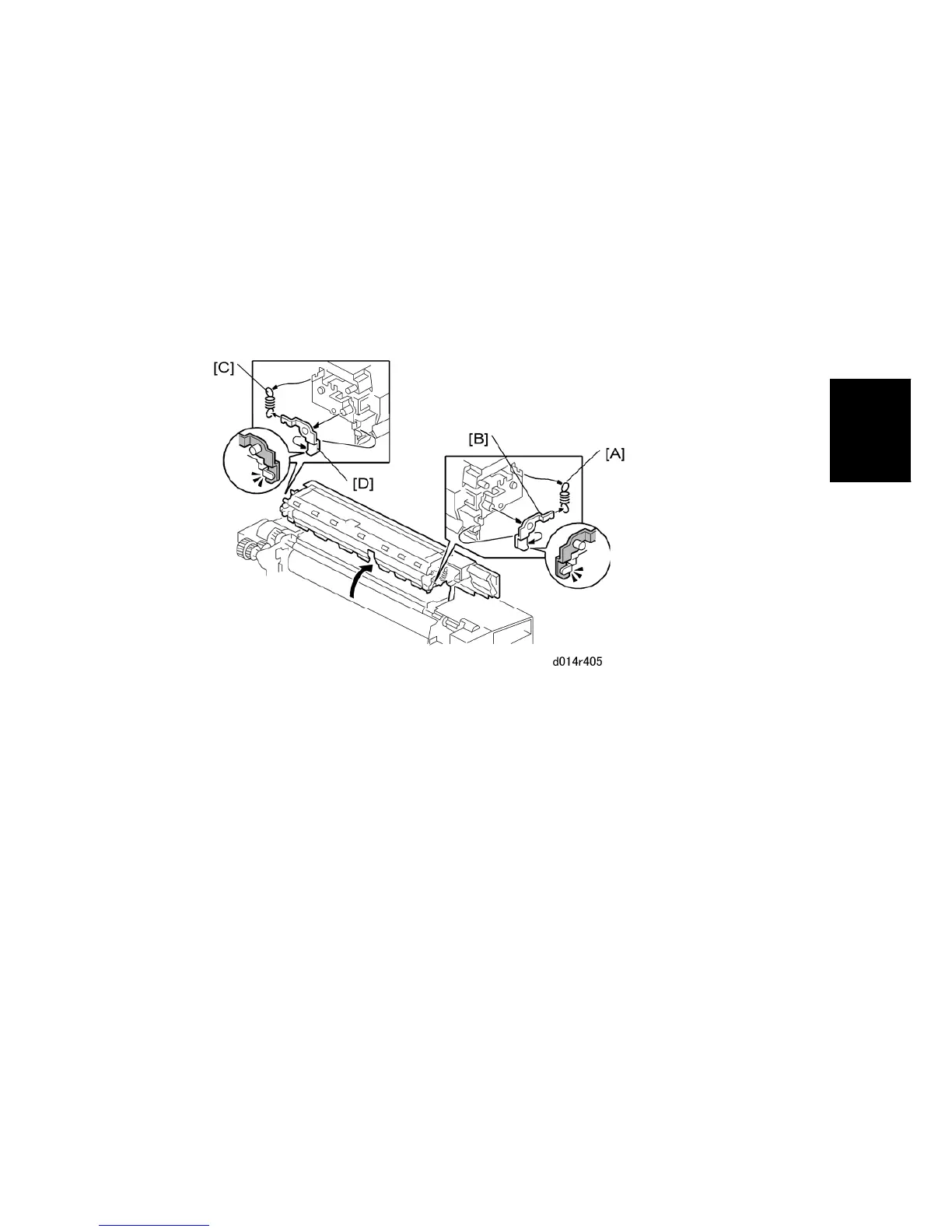

1. Remove:
[A] Spring
[B] Plate
[C] Spring
[D] Plate
