Ricoh D014 - Positioning Roller

REPLACEMENT AND ADJUSTMENT
B830 6 SM
1.2.2 POSITIONING ROLLER
1. Remove the jogger unit cover (

1.1.6)

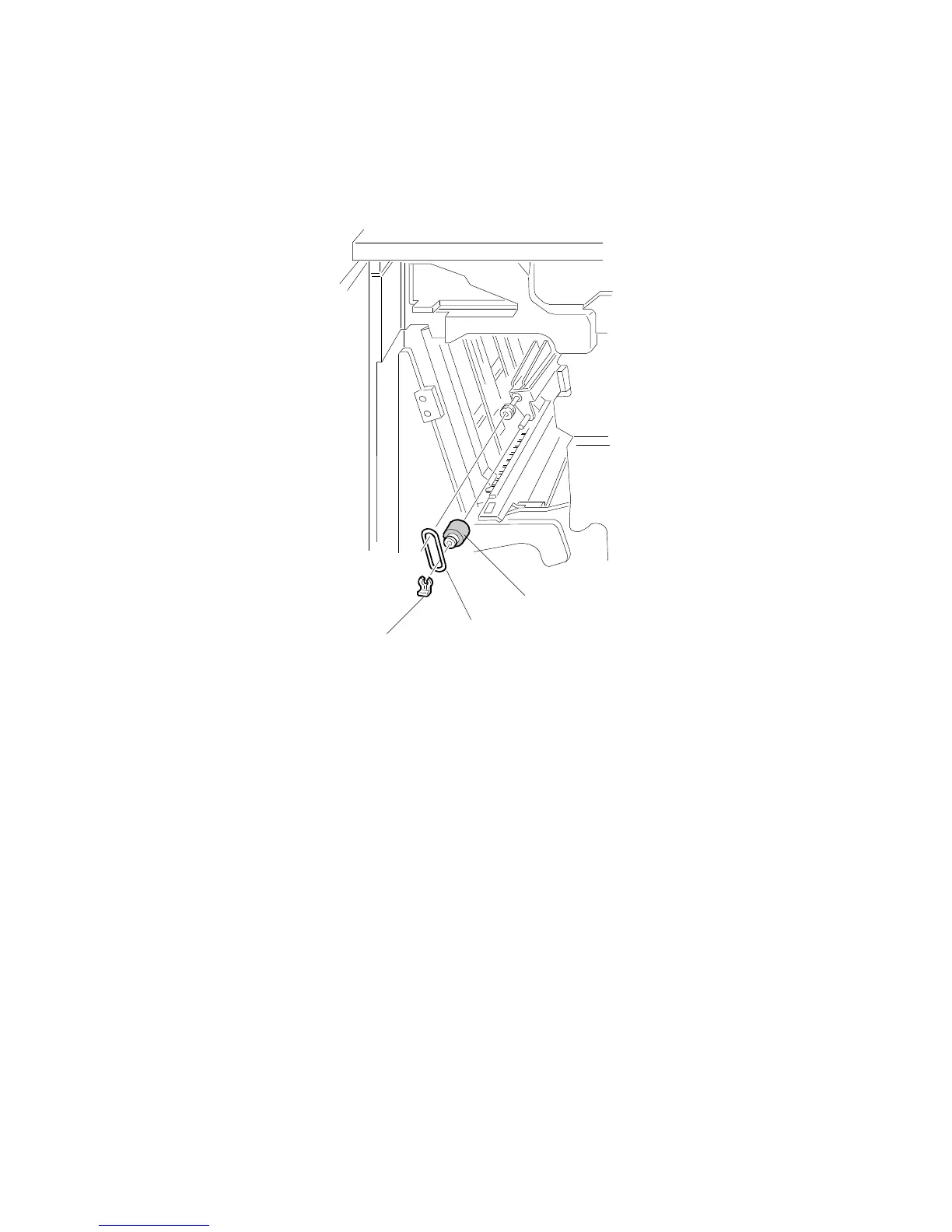

2. Remove the snap ring [A].
3. Release the rubber belt [B].
4. Replace the positioning roller [C].
B830R906.WMF
[A]
[B]
[C]
