Ricoh D014 - Feed Unit Sensors

REPLACEMENT AND ADJUSTMENT
B835 18 SM

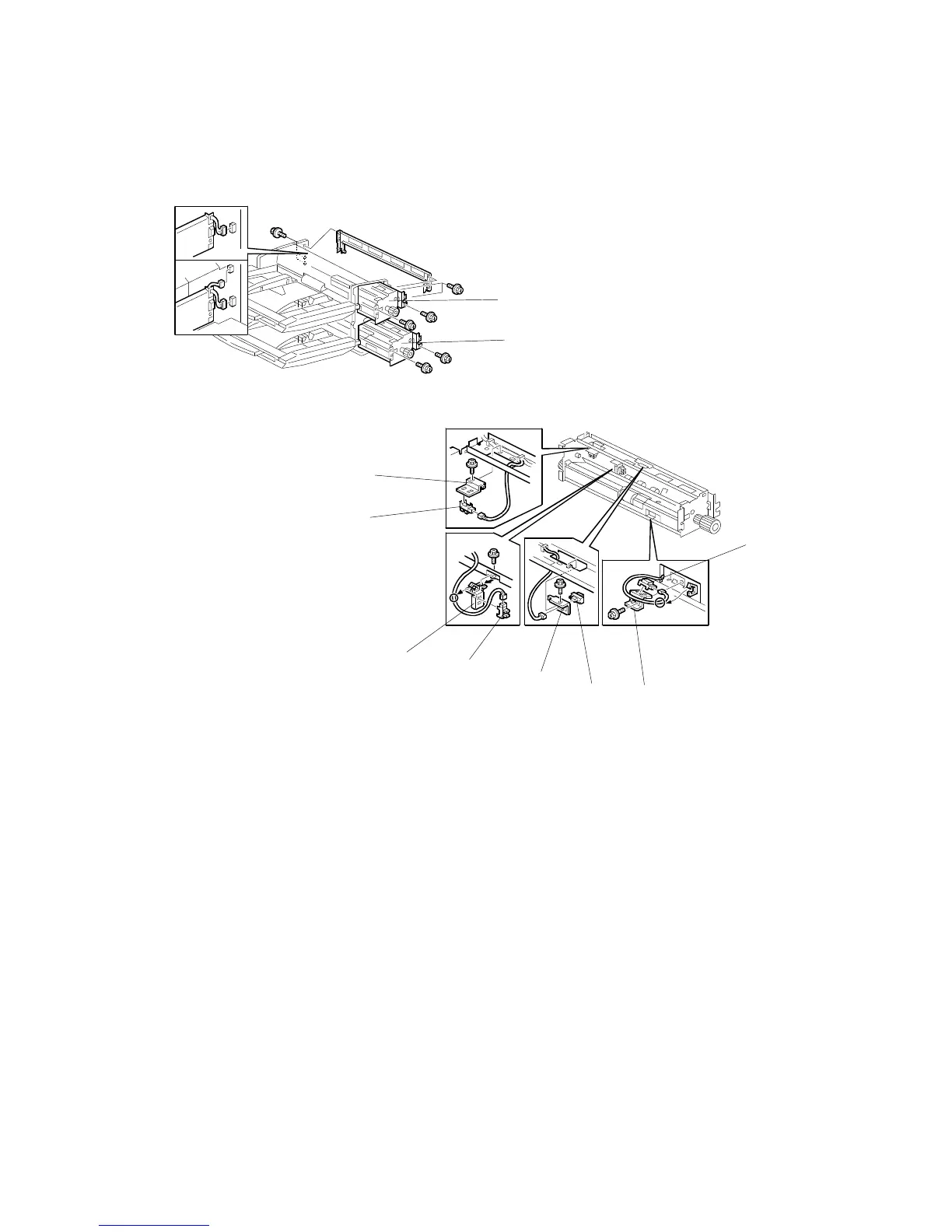

1.6.4 FEED UNIT SENSORS
Remove:
[A] 1st feed unit (

1.3)
[B] 2nd feed unit (

1.3)
[C] Sensor bracket (

x1,

x1)
[D] Pick-up roller HP sensor (Pawls x2)
[E] Sensor bracket (

x1,

x1,

1x)
[F] Bottom plate position sensor (Pawls x2)
[G] Sensor bracket (

x1,

x1) (2nd feed unit only)
[H] 1st Vertical transport sensor (Pawls x2) (2nd feed unit only)
[I] Sensor bracket (

x1,

x1,

x1)
[J] Paper Feed sensor (Pawls x2)
B835R114.WMF
B835R115.WMF
[C]
[D]
[E]
[F]
[G]
[H]
[I]
[J]
[A]
[B]
