SM 3-121 D014/D015/D078/D079
Replacement
Adjustment
3.8.11 PSU
1. Remove the rear covers.
2. Open the controller box door.
3. Remove the PFB/HVPS board frame.
4. Remove:

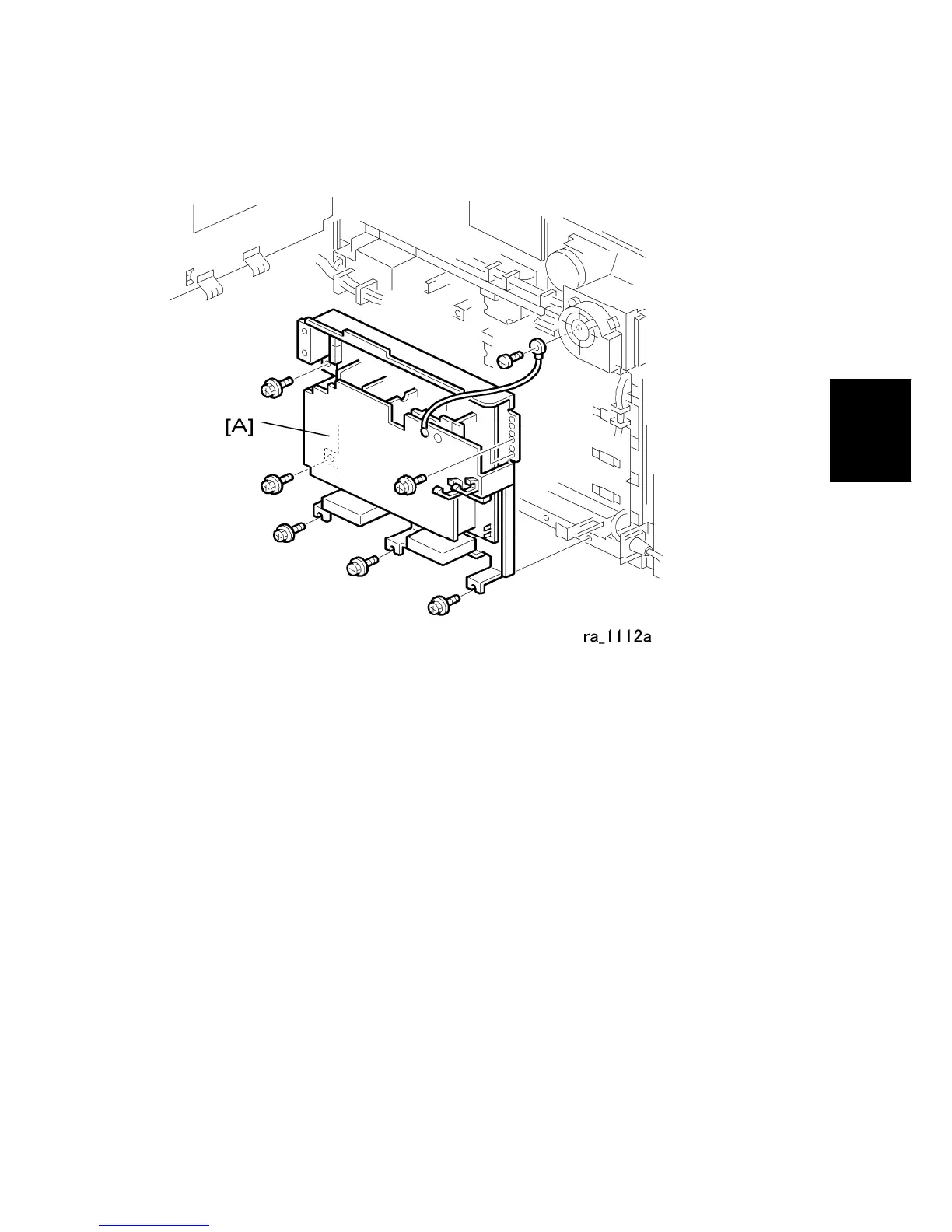

[A] PSU ( x9, x8).
