Ricoh D014 - Left Covers, Rear Cover; Shift Tray; Top Cover

REPLACEMENT AND ADJUSTMENT
SM 3 B830
Finisher
B830

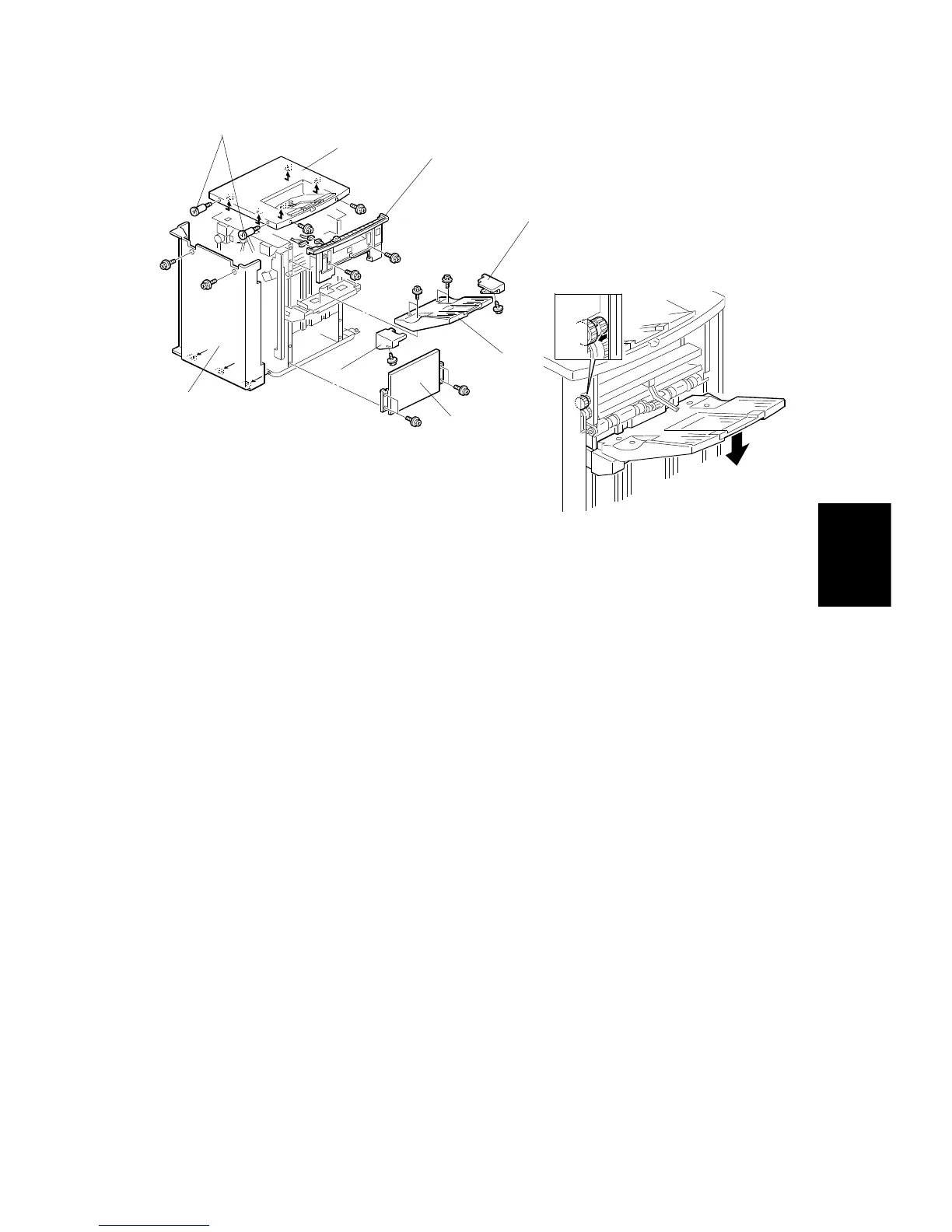

1.1.3 LEFT COVERS, REAR COVER
Remove:
• Shift tray jogger unit (

1.8.1)
• Remove the door and left inner cover. (

1.1.1)
[A] Remove the left upper cover (

x 2,

x 2).
[B] Remove the rear cover (

x 2).
[C] Remove the left lower cover (

x 4).
1.1.4 TOP COVER
Remove:
• Side table, upper tray (

1.1.2)
[D] Step screws (

x 2).
[E] Top cover (

x 2). Slide to the right to remove.
1.1.5 SHIFT TRAY
• If you need to lower the shift tray, support the bottom of the tray with your hand,
then pull the gear toward you

to release the tray and lower it.
Remove:
[F] Remove the shift tray ( x 4).
[G] Shift tray rear cover (

x 1)
[H] Shift tray front cover [H] (

x 1).
B830R504.WMF
B830R904.WMF

[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
