Ricoh D014 - Internal Tapes and Packing Material

Copier D014/D015/D078/D079
D014/D015/D078/D079 1-12 SM

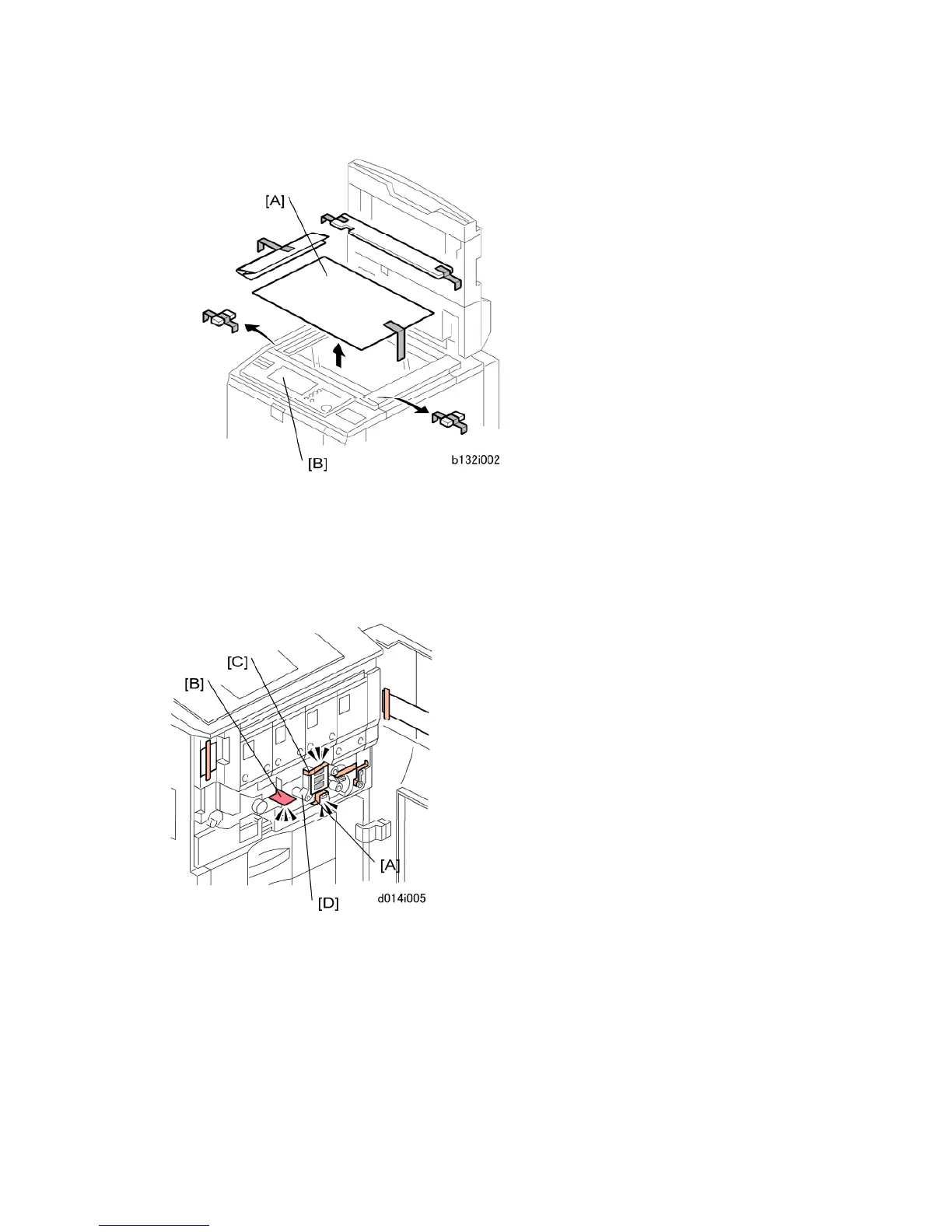

2. Remove:
[A]: Under ARDF
[B]: Operation panel film
Internal Tapes and Packing Material
1. Open the front door:
2. Remove the transfer belt release lever [A] (1 tape). We will install this in the correct
location later.
