Ricoh D014 - Motors; Transport Motors, Exit Guide Motor; Upper Tray Transport Motor

REPLACEMENT AND ADJUSTMENT
B830 32 SM
1.9 MOTORS
1.9.1 TRANSPORT MOTORS, EXIT GUIDE MOTOR


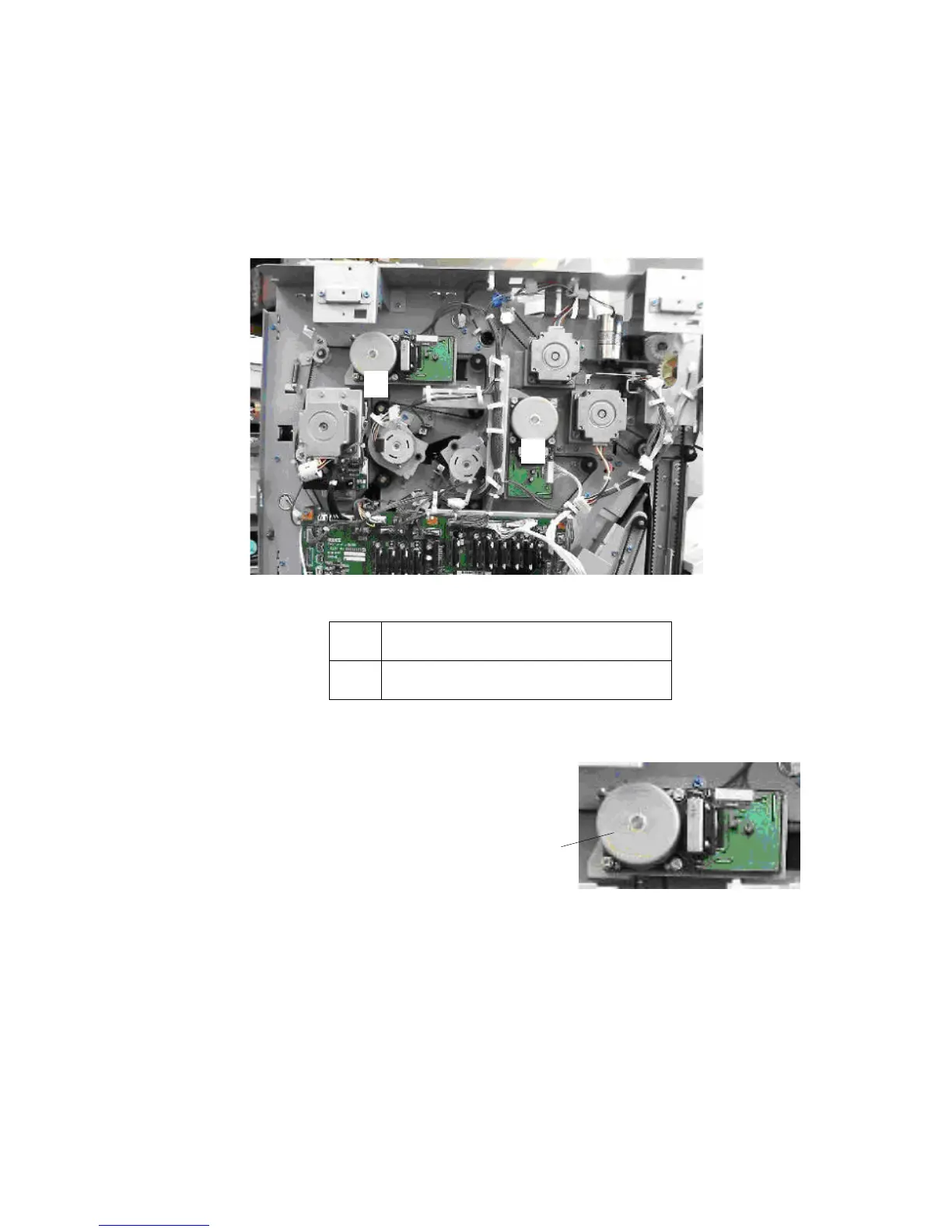

Upper Transport Motor

Lower Transport Motor
Upper Tray Transport Motor
• Rear cover (

1.1.4)
[A] Upper transport motor (

x4,

x1)


[A]
