Installation
D356 10 SM

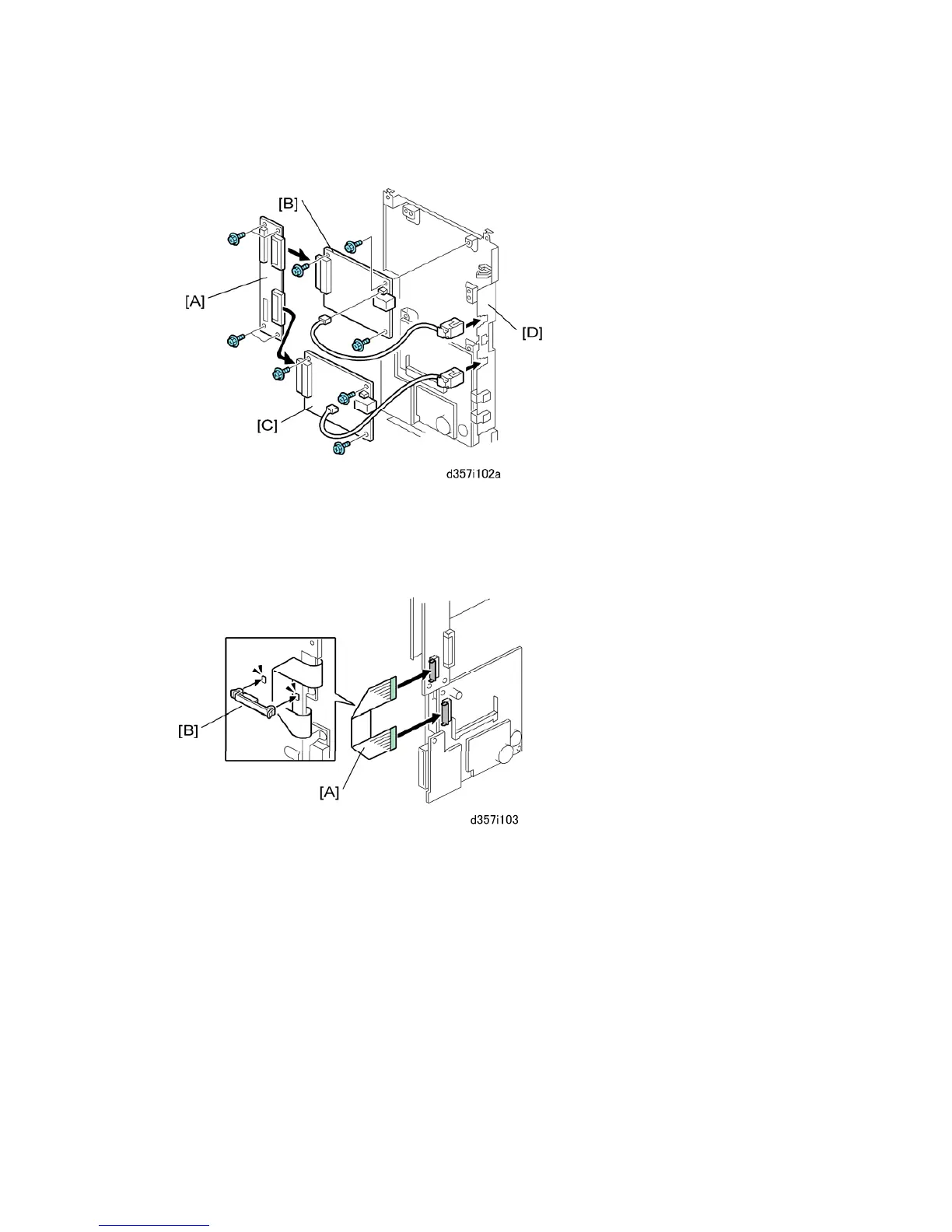

To install the Double SG3 Boards
1. Connect the CCUIF [A] to the SG3 boards [B].
2. Attach the assembled CCUIF/SG3 boards to the FCU [C] (x9).
To complete the installation
1. Connect the flat cable [A] to the CCUIF and FCU.
2. Attach the clamp [B] as shown.
