Ricoh D014 - Sensors; Paper Height Sensors

REPLACEMENT AND ADJUSTMENT
SM 9 B830
Finisher
B830
1.4 SENSORS
1.4.1 PAPER HEIGHT SENSORS
Remove:
• Top cover. (

1.1.1)
• Left upper panel and left upper cover (

x 2,

x 2) (

1.1.3)

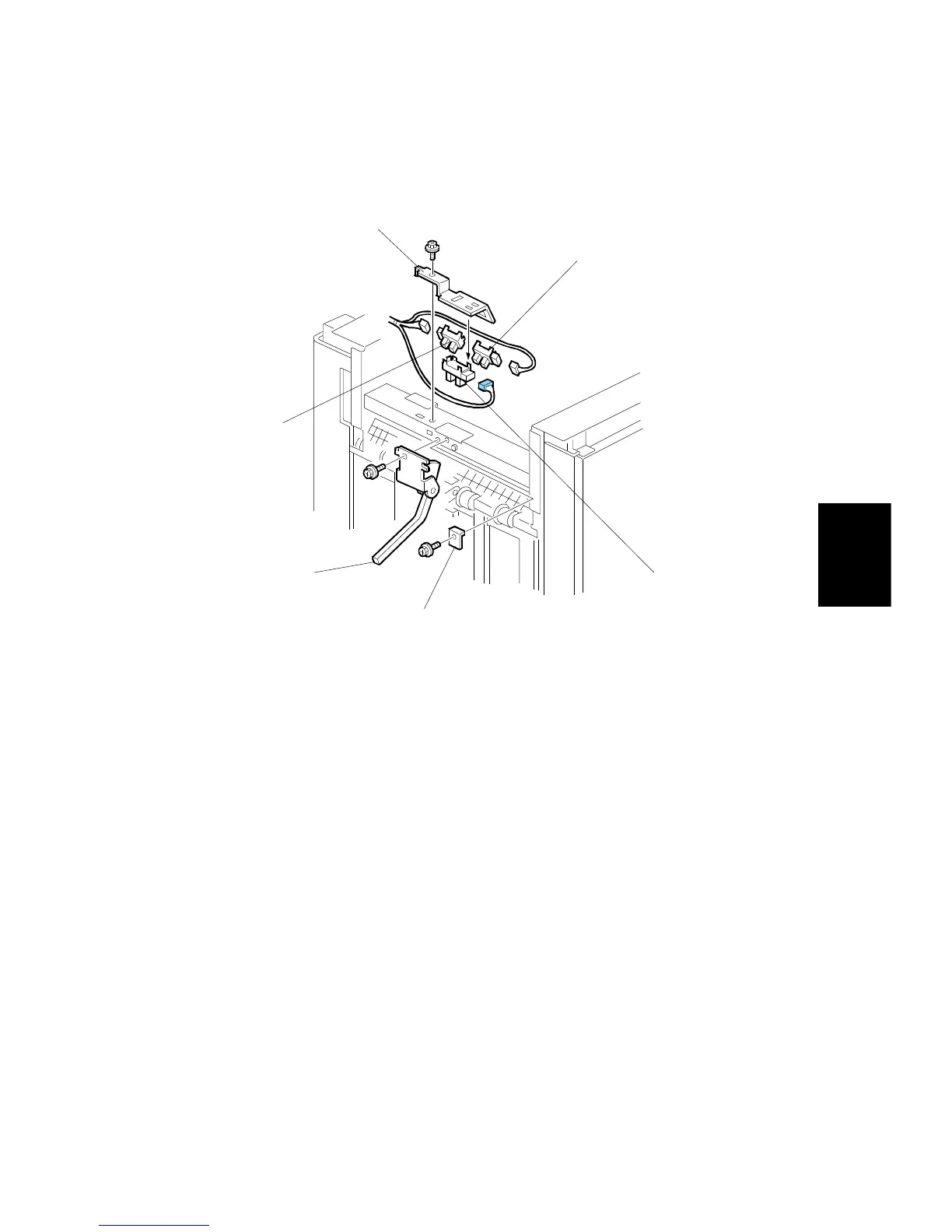

[A] Protector plate (

x 1).
[B] Feeler (

x 1).
[C] Sensor bracket (

x 1).
[D] Paper height sensor – staple mode (

x 1, Pawls x4)
[E] Paper height sensor – standby mode (

x 1, Pawls x4)
[F] Paper height sensor – shift/Z-Fold(

x 1, Pawls x4).
B830R509.WMF
[C]
[B]
[A]
[D]
[E]
[F]
