SR 5000 (B830) Finisher Installation
SM 1-107 D014/D015/D078/D079
Installation
Connecting the Finisher B830

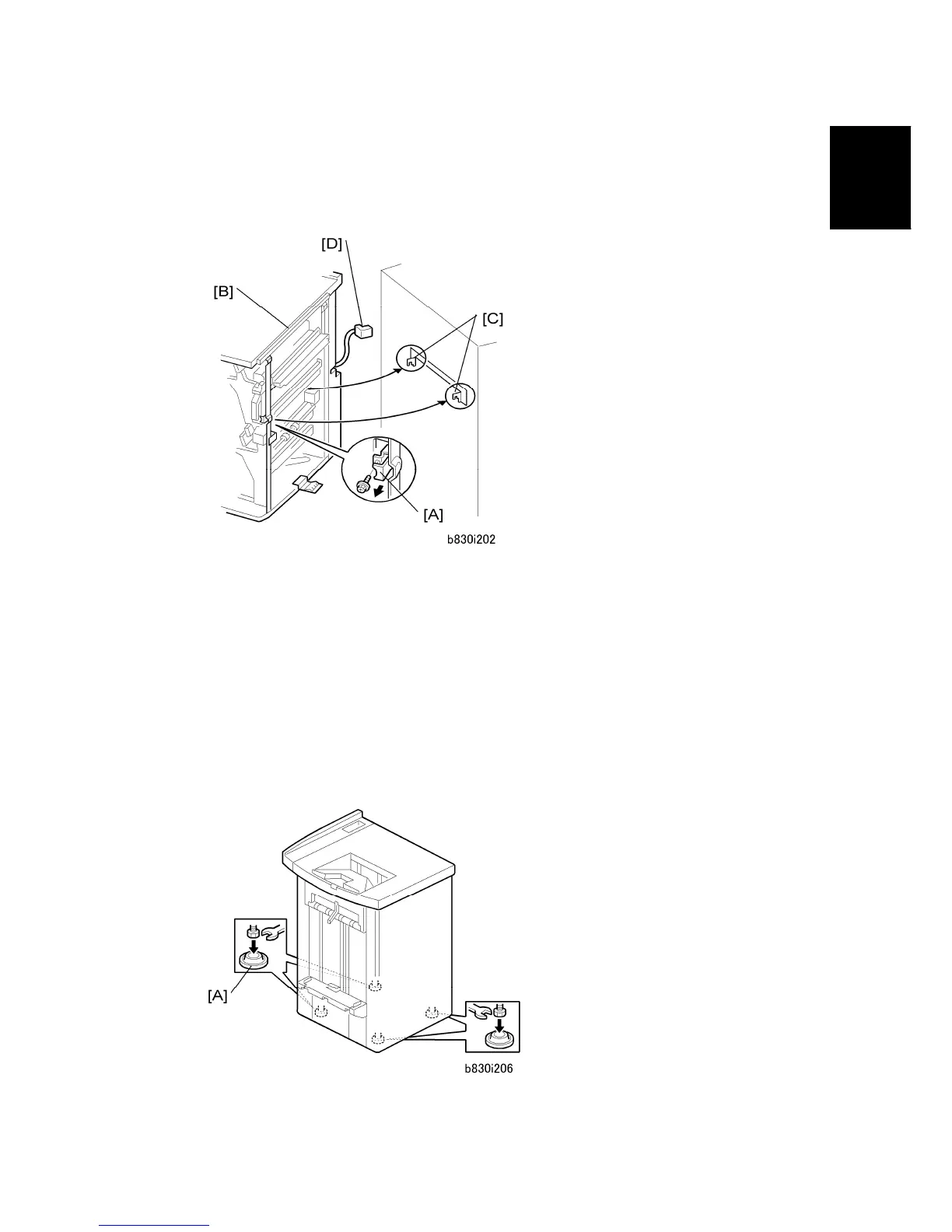

1. Open the front door of the finisher.
2. Pull out the locking lever [A] ( x 1).
3. Align the finisher [B] with the joint brackets [C], then slowly push the finisher onto the
brackets.
4. Connect the finisher cable [D] to the copier
5. Push in the locking lever [A].
6. Check that the top edges of the finisher are parallel with edges of the device (or copier)
to the right.
7. Fasten the locking lever [A] ( x 1)
8. Close the front door.
