SR 5000 (B830) Finisher Installation
D014/D015/D078/D079 1-106 SM

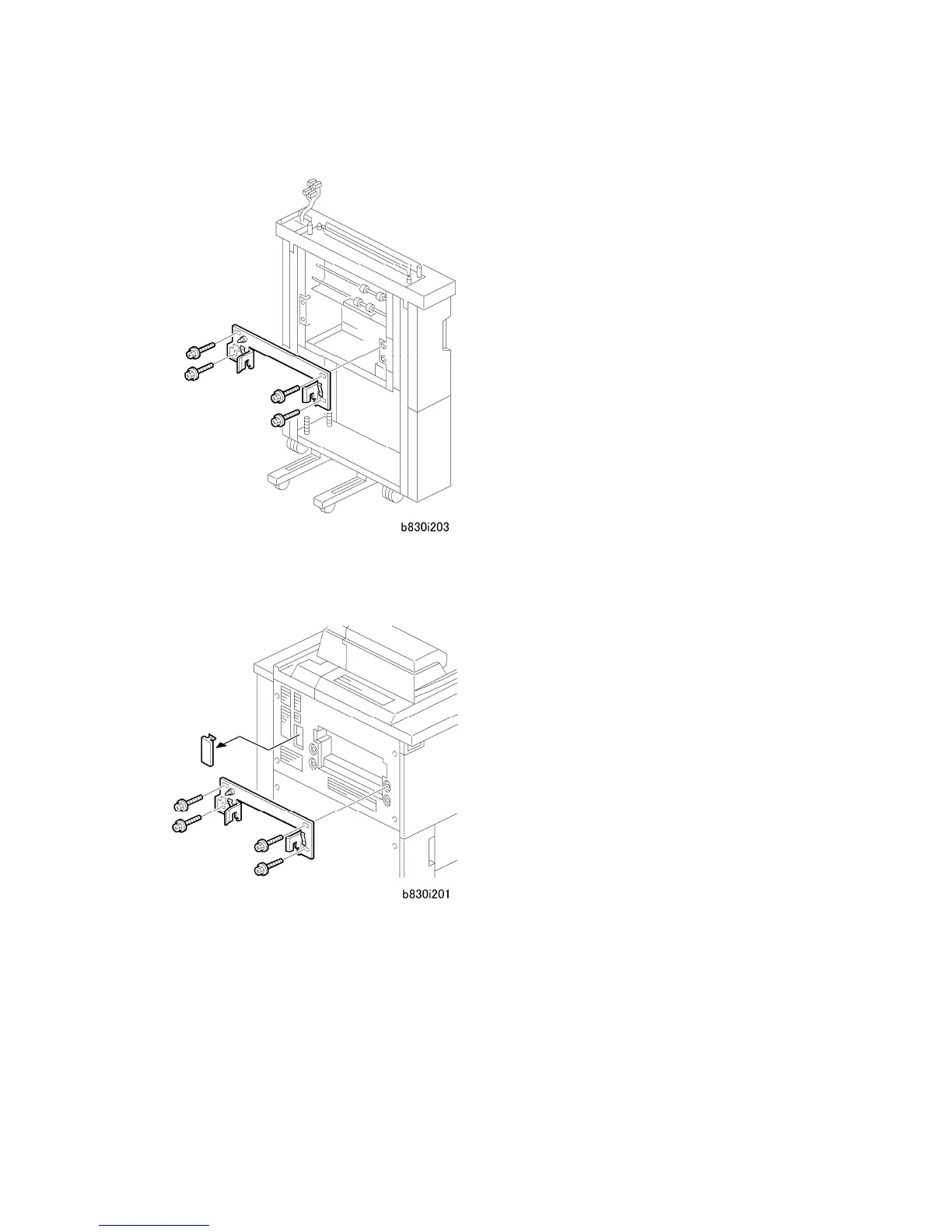

Finisher B830 to Cover Interposer Tray B835
1. Fasten the joint bracket to the Cover Interposer Tray B835.
2. Dock the finisher. (Go to 'Connecting the Finisher B830'.)
Finisher B830 to Copier D014/D078
1. Remove the connector cover
2. Fasten the joint bracket to the Copier.
3. Dock the finisher. (Go to 'Connecting the Finisher B830'.)
