DETAILS
B830 56 SM
3.9.4 SHIFT TRAY OPERATION: STAPLE MODE

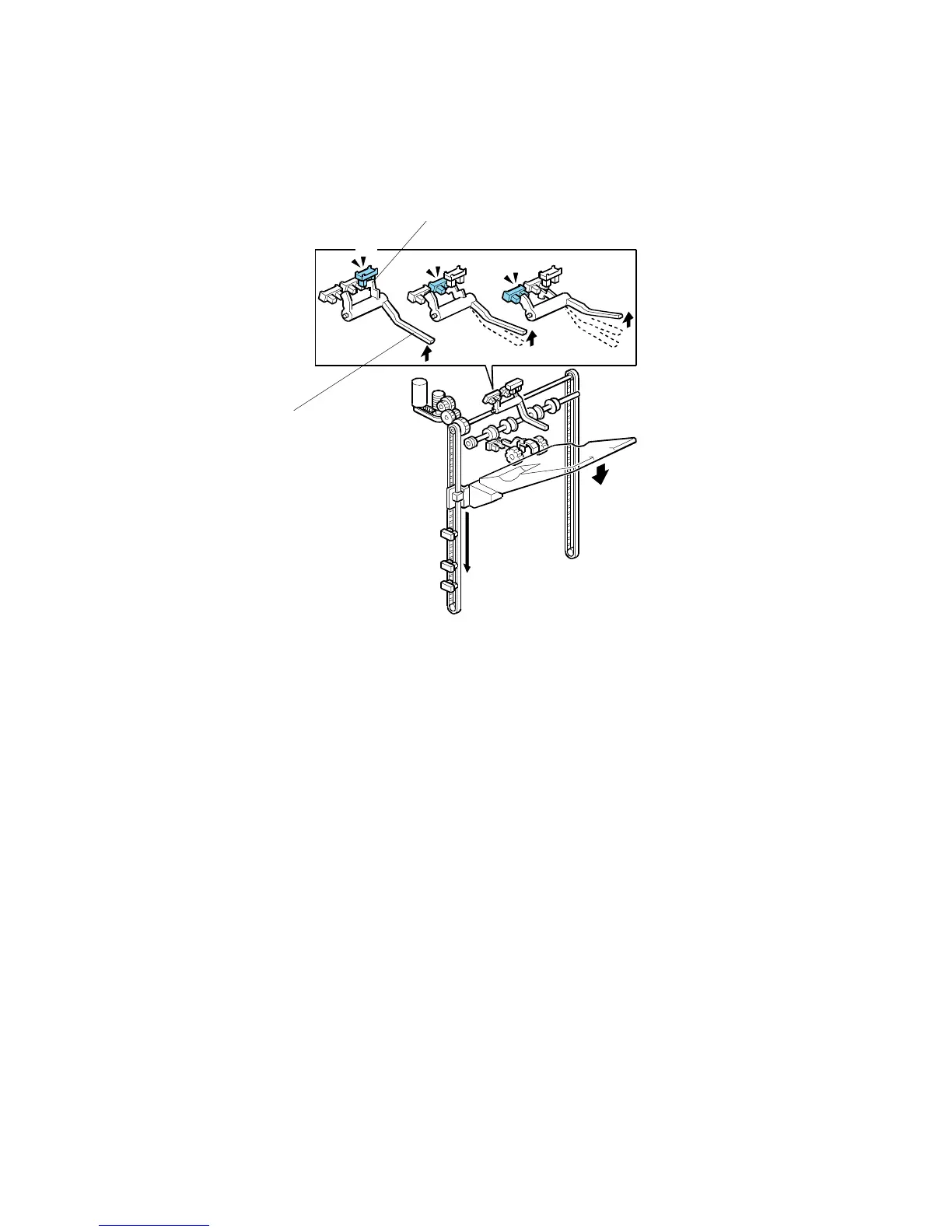

Sensor
, feeler [A] and its notched actuator [B] control the movement of the shift
tray when paper is output to the shift tray in the staple mode:
1. A stapled stack is output to the tray.
2. The tray lift motor switches ON and lowers the tray the prescribed distance.
3. Next, the tray lift motor raises the tray and feeler [A] until actuator [B] leaves the
gap of Sensor
.
4. When the actuator [b] leaves the gap of sensor
, this switches Sensor
OFF
and switches the tray lift motor OFF.
This sequence repeats every time a stack is output to the tray until the end of the
job or until the tray becomes full. (
3.9.6)
