Photoconductor Units (PCU)
SM 6-29 D014/D015/D078/D079
Detailed
Descriptions
shown) applies the bias to the development bias terminal that is attached to the shaft of the
development roller. Excess toner removed by the doctor blade drops into the toner
collection auger [6].

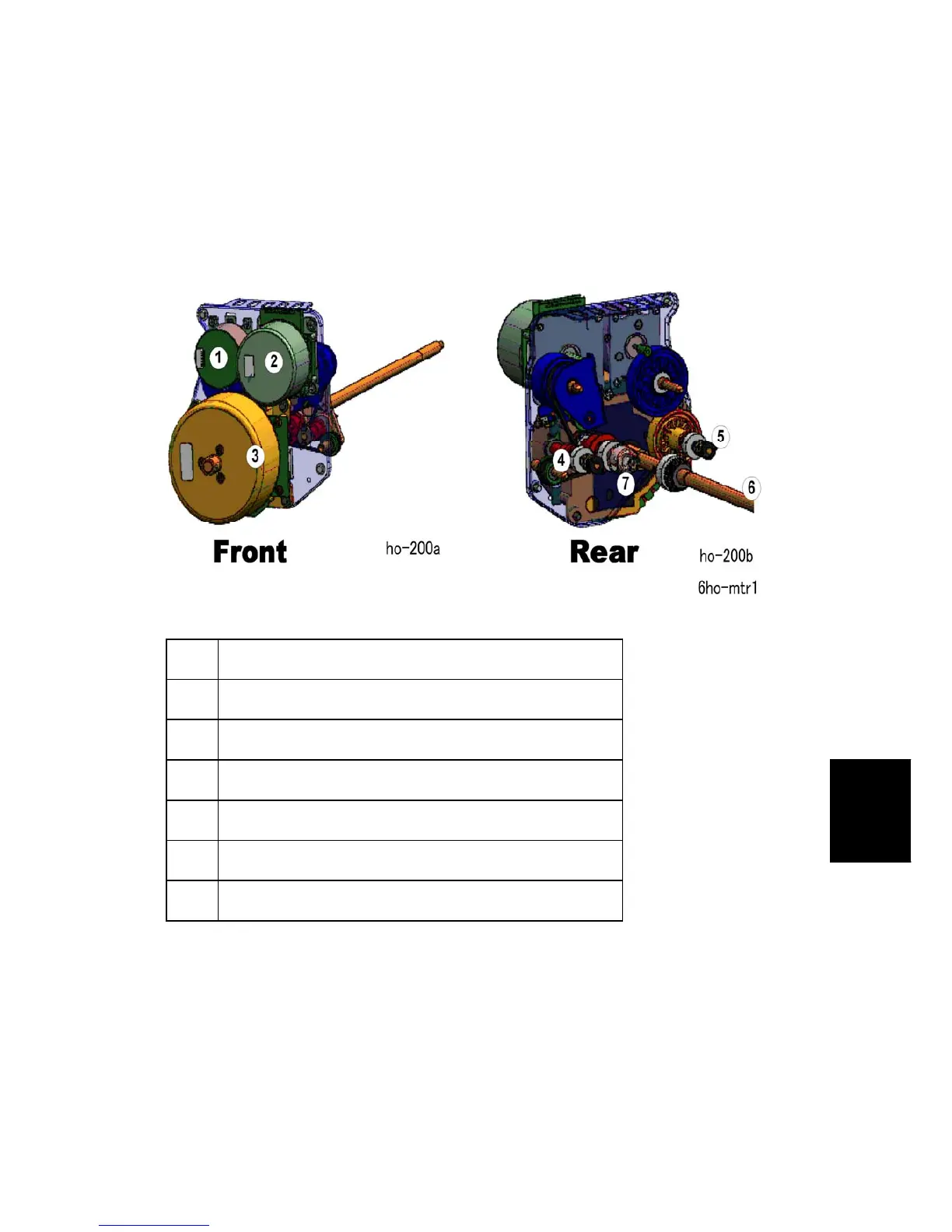

Development, PCU Unit Drive
1. Drum Cleaning Motors x4
2. Development Motors x4
3. Drum Motors x4
4. Development Auger Shaft
5. Drum Cleaning Motor Shaft
6. Drum Motor Shaft
7. Development Roller Shaft
