REPLACEMENT AND ADJUSTMENT
SM 11 B660
Z-
Folding Unit
B660
1.11 MAIN CONTROL BOARD
Remove:
• Rear cover. (
1.2)
[A] Main control board [A] (
x 4,
x 10)

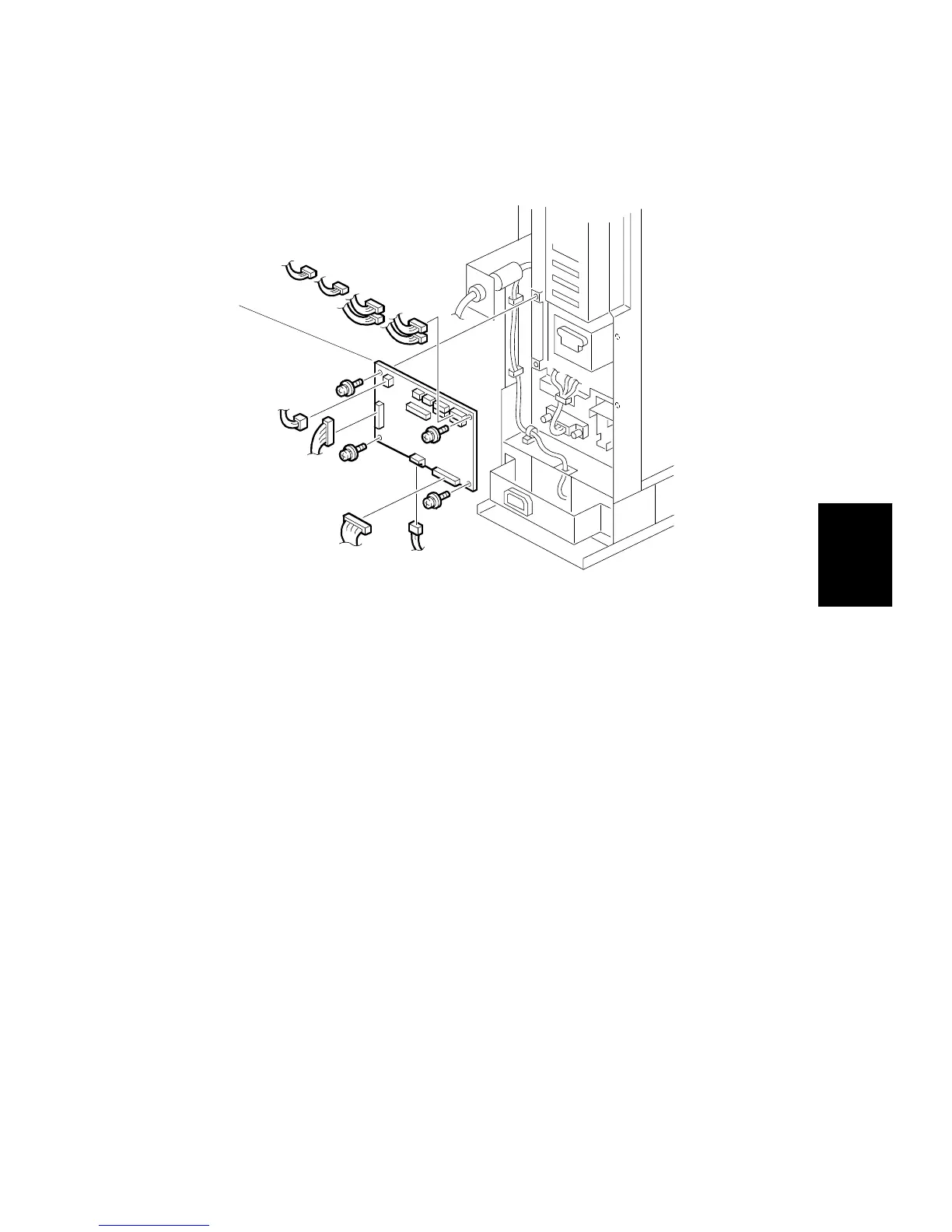

B660R111.WMF
[A]
