REPLACEMENT AND ADJUSTMENT
SM 17 B660
Z-
Folding Unit
B660

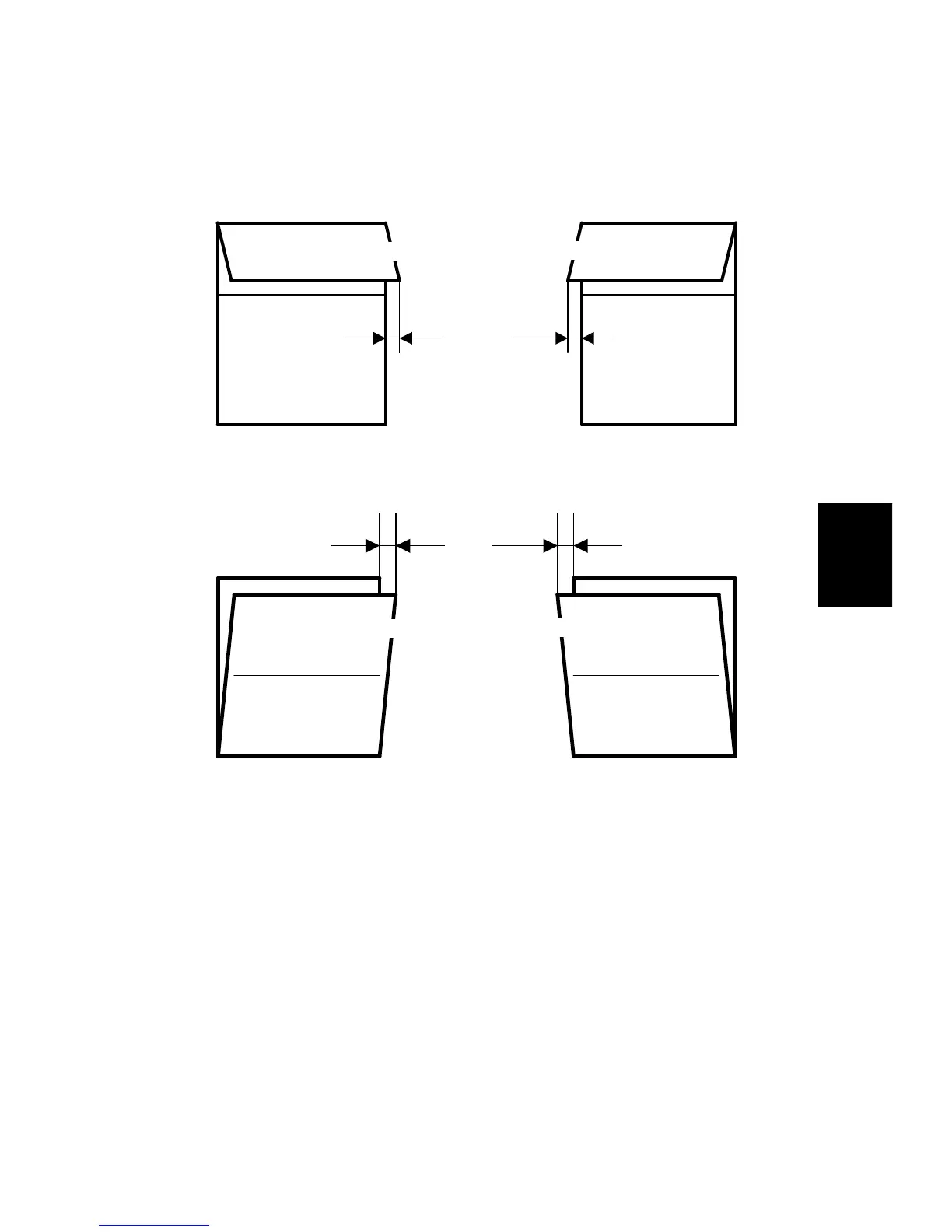

1.13.4 Z-FOLD ADJUSTMENT REFERENCE TABLE
1st Fold Adjustment
2nd Fold Adjustment
NOTE: A one-notch adjustment on the scale means the alignment is corrected by
about 1 mm.
B660R235.WMF
B660R240.WMF
X
X
Turn screw left
Turn screw right
X
X
Turn screw right
Turn screw left
