Differences Between the D014/D015 & B132/B200
SM D-29 D014/D015/D078/D079
DEVELOPMENT UNIT

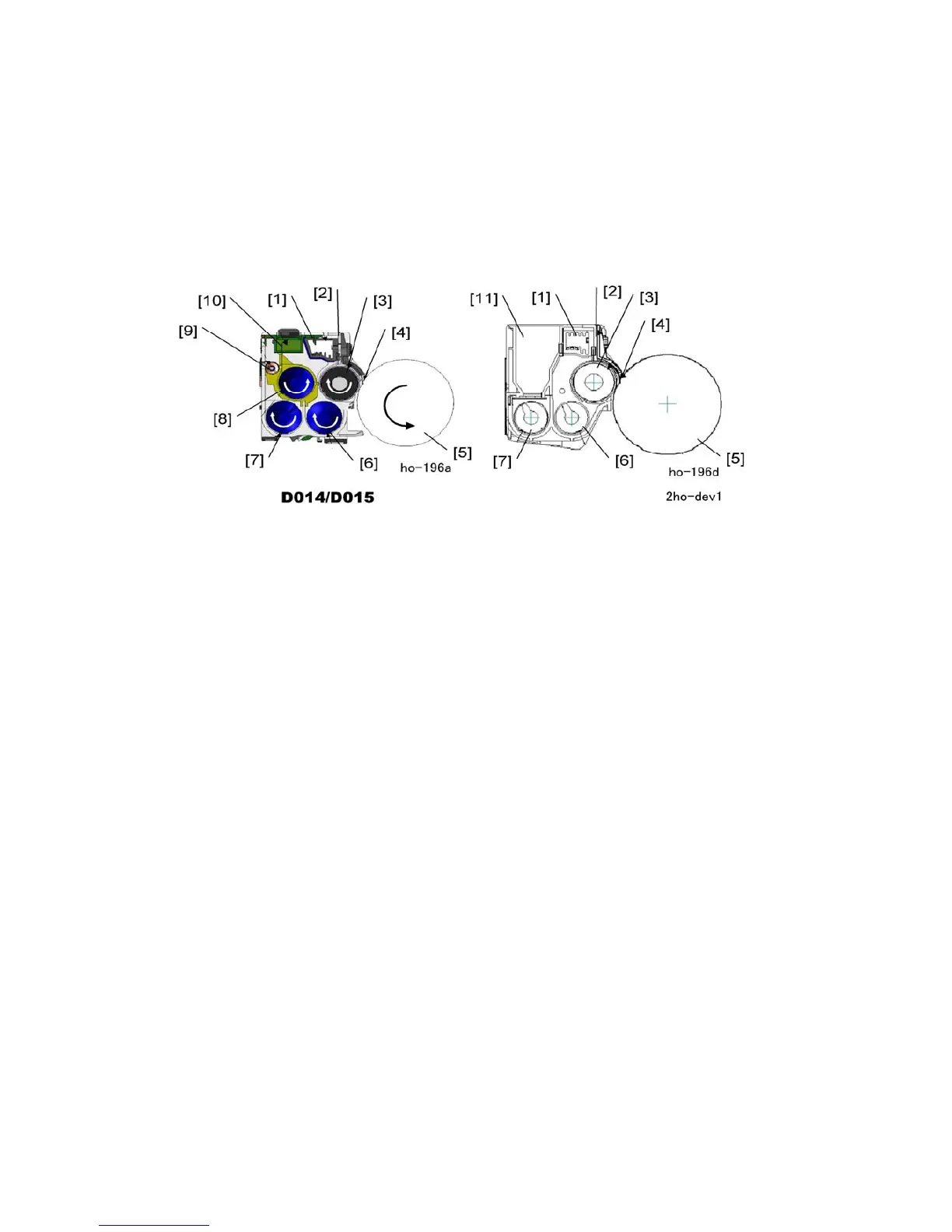

Cross-Section of Development Unit
D014/D015 B132/B200
1 Heat Sink Heat Sink
2 Doctor Blade (t=2.0) Doctor Blade (t=2.0)
3 Development Roller Development Roller
4 Entrance Seal Entrance Seal
5 Drum (diameter 60) Drum (diameter 60)
6 Toner Collection Auger (dia. 22) Developer Auger 1 (dia. 18)
7 Mixing Auger (diameter 22) Developer Auger 2 (dia. 18)
8 Supply Auger (dia. 22) ---
9 Used Toner Auger ---
10 Filter ---
11 --- Developer Cartridge
Note: The D014/D015 does not contain a developer cartridge. The PCU is filled with
developer from a newly designed bottle. The PCU does not need to be removed from the
B132/B200
