Differences Between the D014/D015 & B132/B200
D014/D015/D078/D079 D-6 SM
Paper Feed
1. Handling Thick Paper

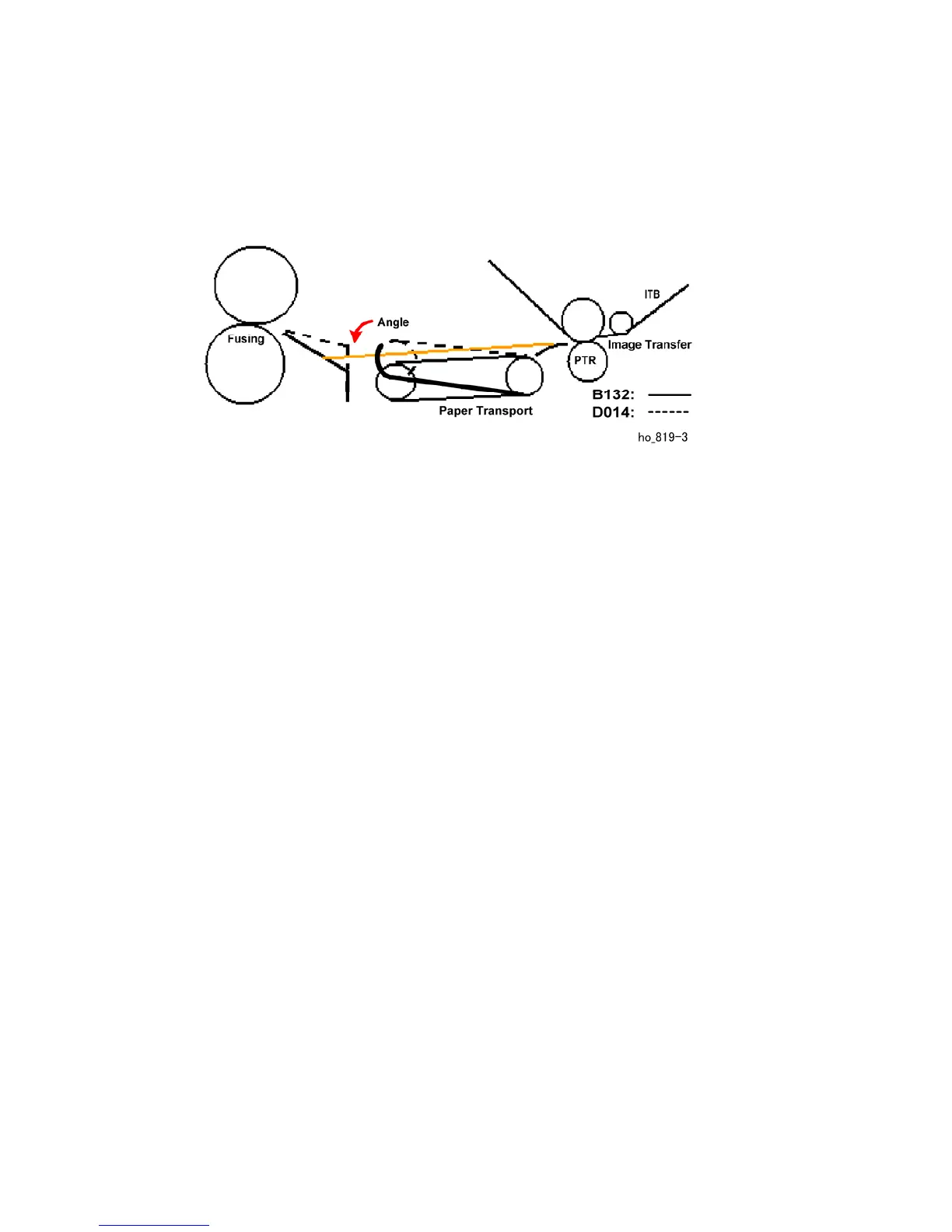

As shown in the diagram above, the paper feed path has been changed. The dotted
lines show the shape of the paper feed path of the D014/D015, the solid lines the path in
the B132/B200.
The paper transport unit and the fusing unit entrance guide were both raised, so the
angle is much shallower. The change in the angle allows thick paper to feed much
easier. Even 300 g A4 LEF paper can now feed more efficiently.
The area where the paper contacts the transport belt has also been enlarged.
