Ricoh D014 - Z-Fold Unit B660 to Cover Interposer Tray B835

Cover Interposer Tray CI5000 (B835)
SM 1-135 D014/D015/D078/D079
Installation
1.16.3 DOCKING THE COVER INTERPOSER TRAY B835
The following units are docked to the cover interposer tray:
 Z-Fold Unit B660
 Finisher B830
Z-Fold Unit B660 to Cover Interposer Tray B835

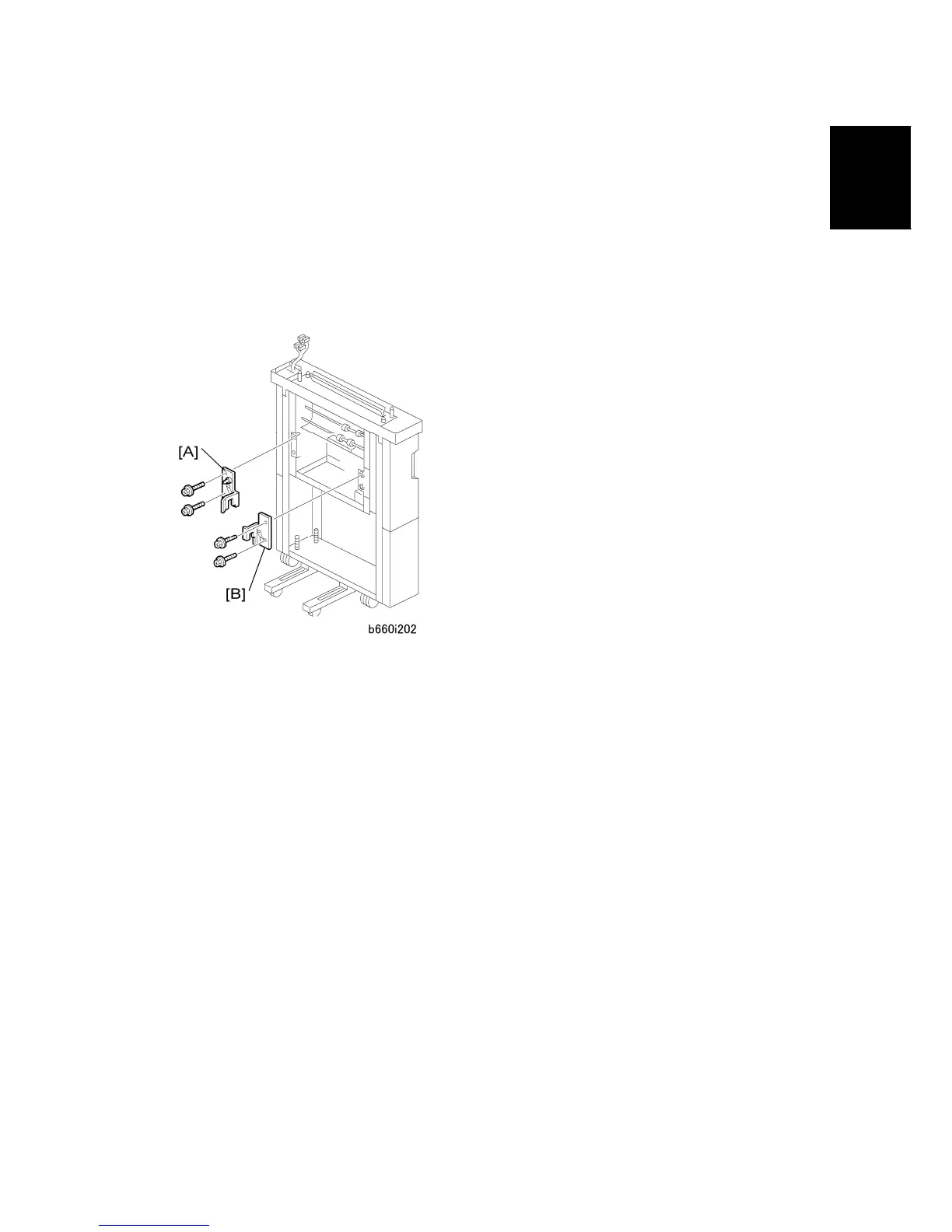

1. Attach the rear docking bracket [A].
2. Attach the front docking bracket [B].
3. Connect the Z-folding unit.
