SENSORS
B762 2 SM
1.2 SENSORS

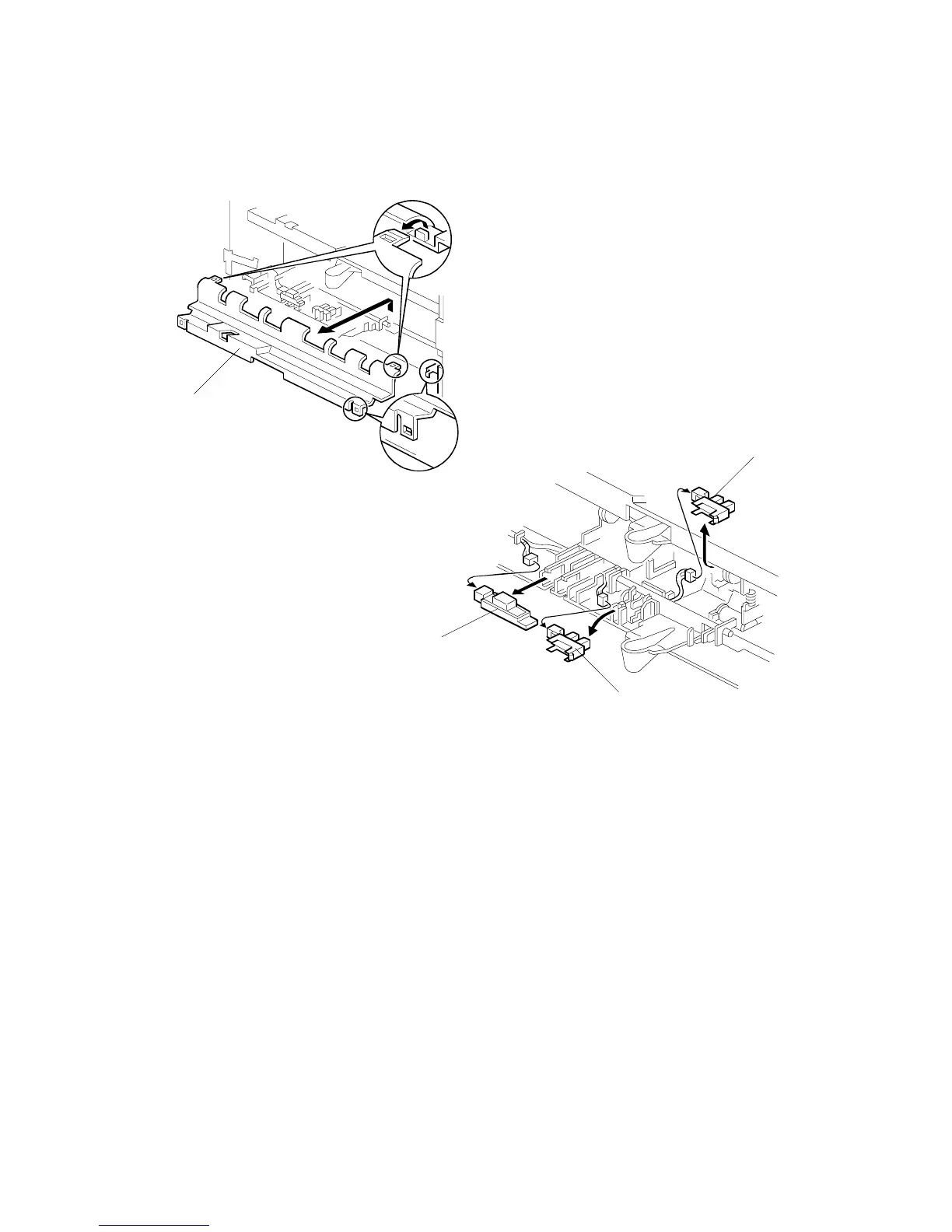

Remove the tray ( 1.1)
[A]: Bin cover
[B]: Tray sensor ( x 1)
[C]: Tray overflow sensor ( x 1)
[D]: Vertical transport sensor ( x 1)
• Raise the pawl, then grip the bottom of the sensor to remove.
B471R003.WMF
B471R104.WMF
[B]
[C]
[D]
[A]
