Ricoh D014 - Feed Motor

REPLACEMENT AND ADJUSTMENT
SM 3 B660
Z-
Folding Unit
B660
1.3 FEED MOTOR
1. Pull the Z-folding mechanism out of the unit, but not fully.
2. Remove: (

1.2)
• Left cover
• Right cover
• Rear cover

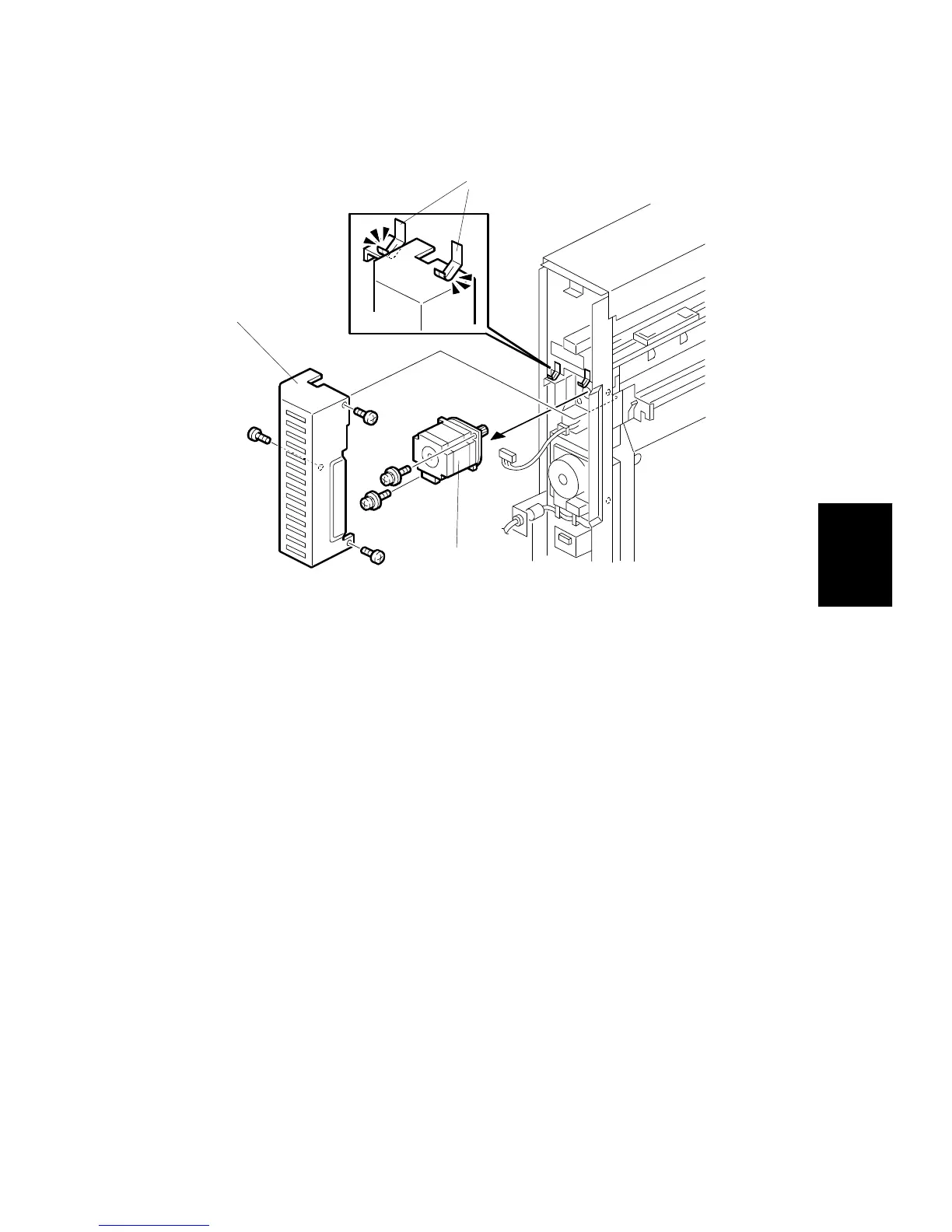

[A]: Motor cover (

x 3)
[B]: Feed Motor (

x 2,

x 1, timing belt x 1)
Reinstallation
• Confirm that the motor cover is below the leaf springs at [C].
B660R102.WMF
[A]
[B]
[C]
