Ricoh D014 - 1 St, 2 Nd Feed Motors

REPLACEMENT AND ADJUSTMENT
SM 11 B835
Cover
Interposer
Tray
B835
1.5.4 1ST, 2ND FEED MOTORS
• Tray unit rear cover (

1.1)

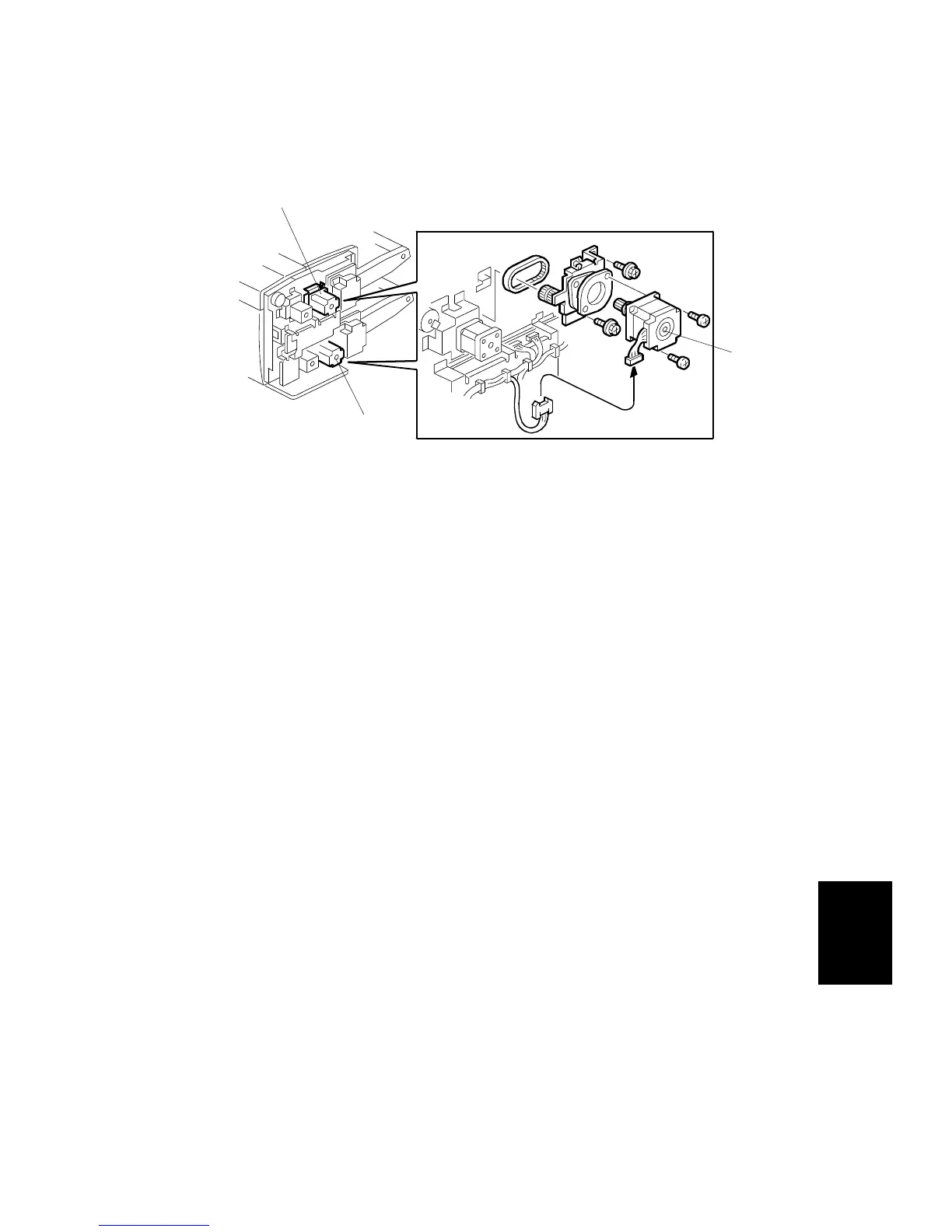

[A] 1st feed motor unit (

x3,

x2,

x1)
[B] 1st feed motor ( x2, Timing belt x1)
[C] 2nd feed motor unit (

x3,

x1)
[D] 2nd feed motor unit (

x2, Timing belt x1)
B835R108.WMF
[A]
[B], [D]
[C]
