Copier D014/D015/D078/D079
D014/D015/D078/D079 1-34 SM
Connect the Upper and Lower Tray Heaters
The machine comes from the factory with the tray heaters disconnected.
Heater connection is optional. Connect the heaters if the location is extremely
humid. Speak with the customer before you connect the tray heaters.

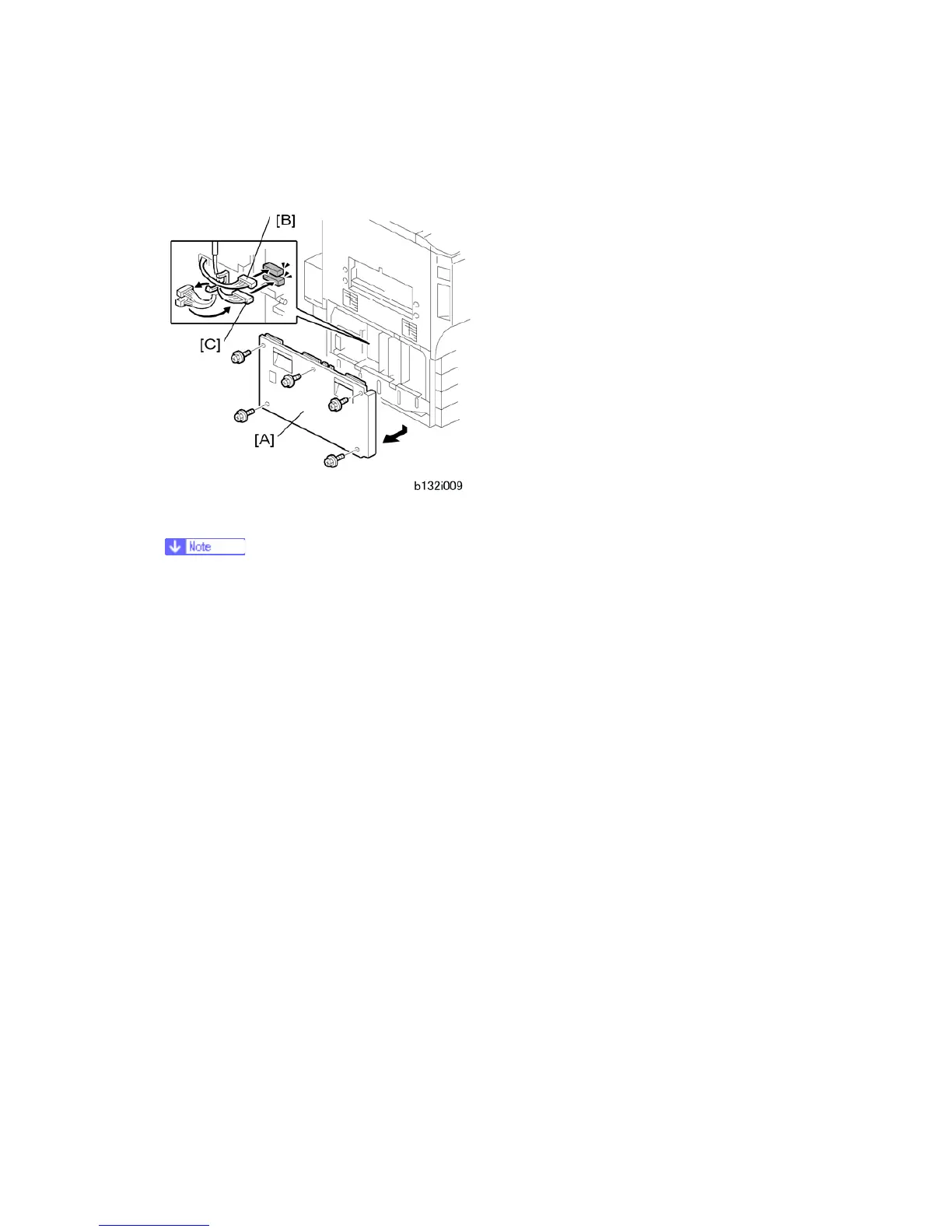

1. Remove the left lower cover [A] ( x 5).
2. If the paper tray unit heater (HTS) or image transfer/scanner heater are required,
attach connectors HT5 [B] and HT6 [C] (= x 1, x 2)
