Ricoh D014 - Staple Trimmings Hopper Full Sensor

REPLACEMENT AND ADJUSTMENT
B830 16 SM
1.4.7 STAPLE TRIMMINGS HOPPER FULL SENSOR
• Open the front door
• Pull out the stapler unit
• Remove the rear cover (

x 2).
Remove:

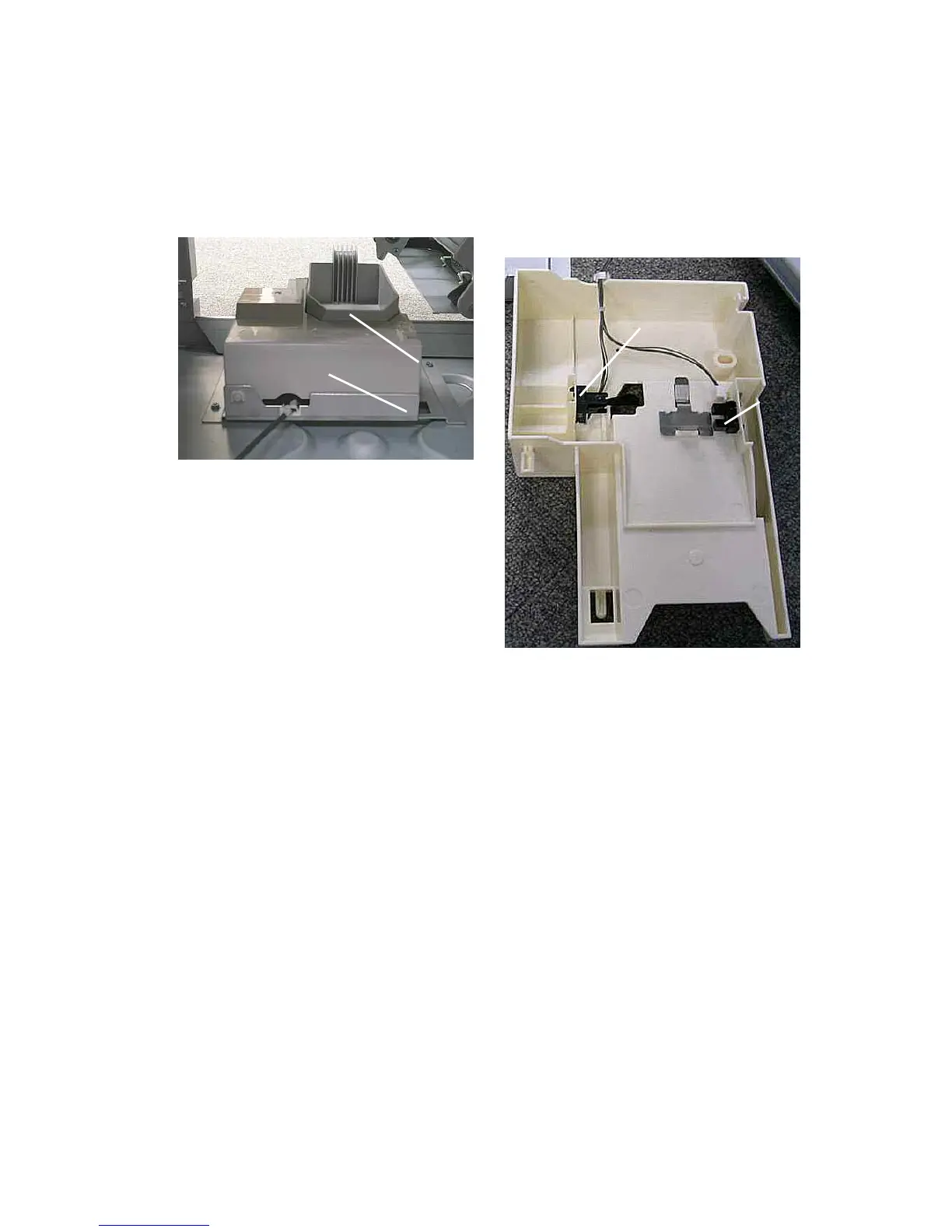

[A] Staple trimmings hopper
[B] Hopper holder (

x1, Hook x1,

x1)
[C] Hopper full sensor (

x 1)
[D] Hopper set sensor (

x 1)
[A]
[B]
[C]
[D]
