Ricoh D014 - 1 St Transport Sensor

REPLACEMENT AND ADJUSTMENT
SM 17 B835
Cover
Interposer
Tray
B835
1.6.3 1ST TRANSPORT SENSOR
• Top cover
• Vertical feed cover
• Stay (

1.5)

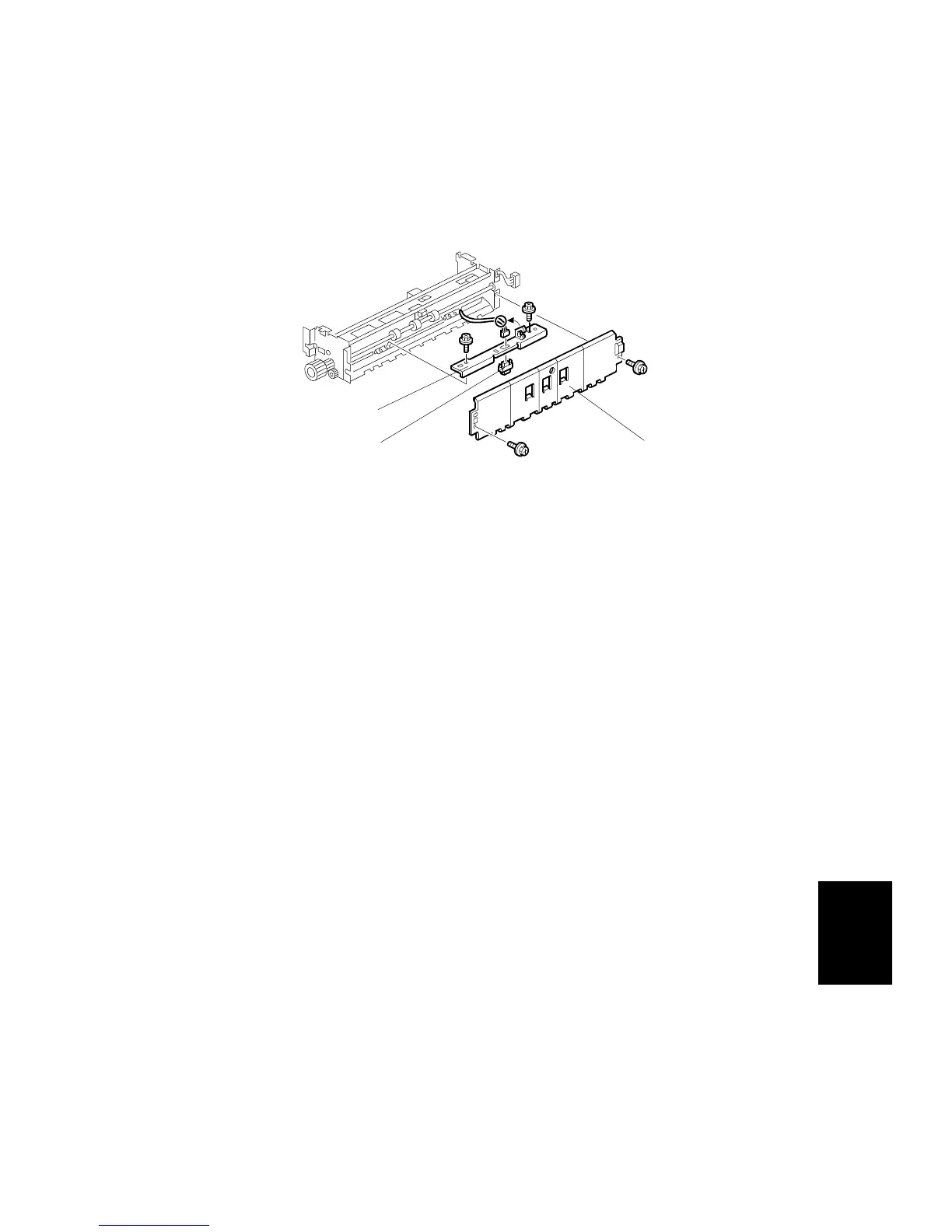

Remove:
[A] Upper paper guide (

x2)
[B] Sensor unit (

x2,

x1,

x1)
[C] 1st transport sensor (Pawls x2)
B835R117.WMF
[A]
[B]
[C]
