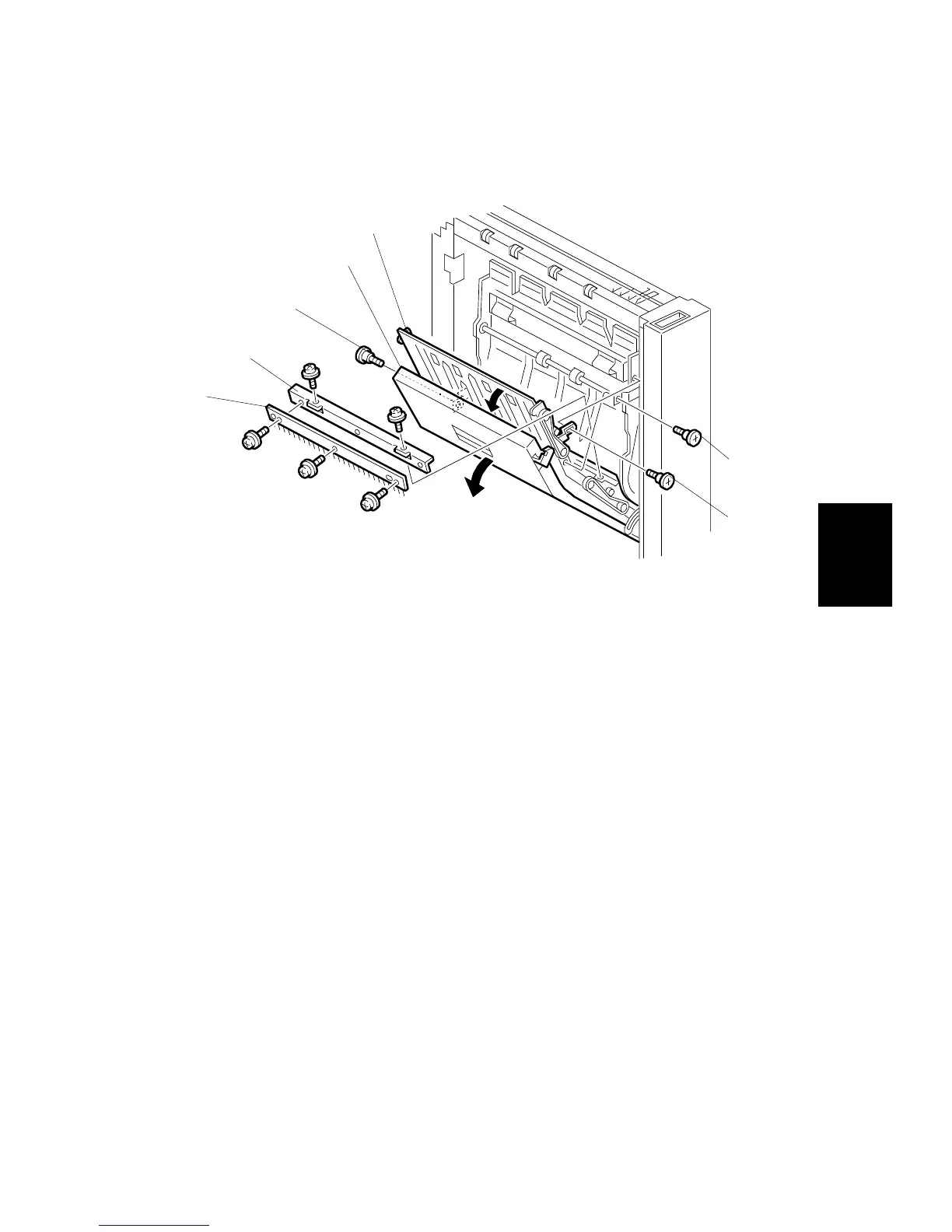

1.9 ANTI-STATIC BRUSH
1. Pull out the Z-folding mechanism.
2. Open the left vertical transport cover [A].
3. Open the vertical transport assembly [B].
Remove:
[C] Left link screw
[D] Right link screw
[E] Link screw [E]
[F] Bracket
[G] Anti-static brush
B660R109.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
