OVERALL MACHINE INFORMATION
B835 30 SM

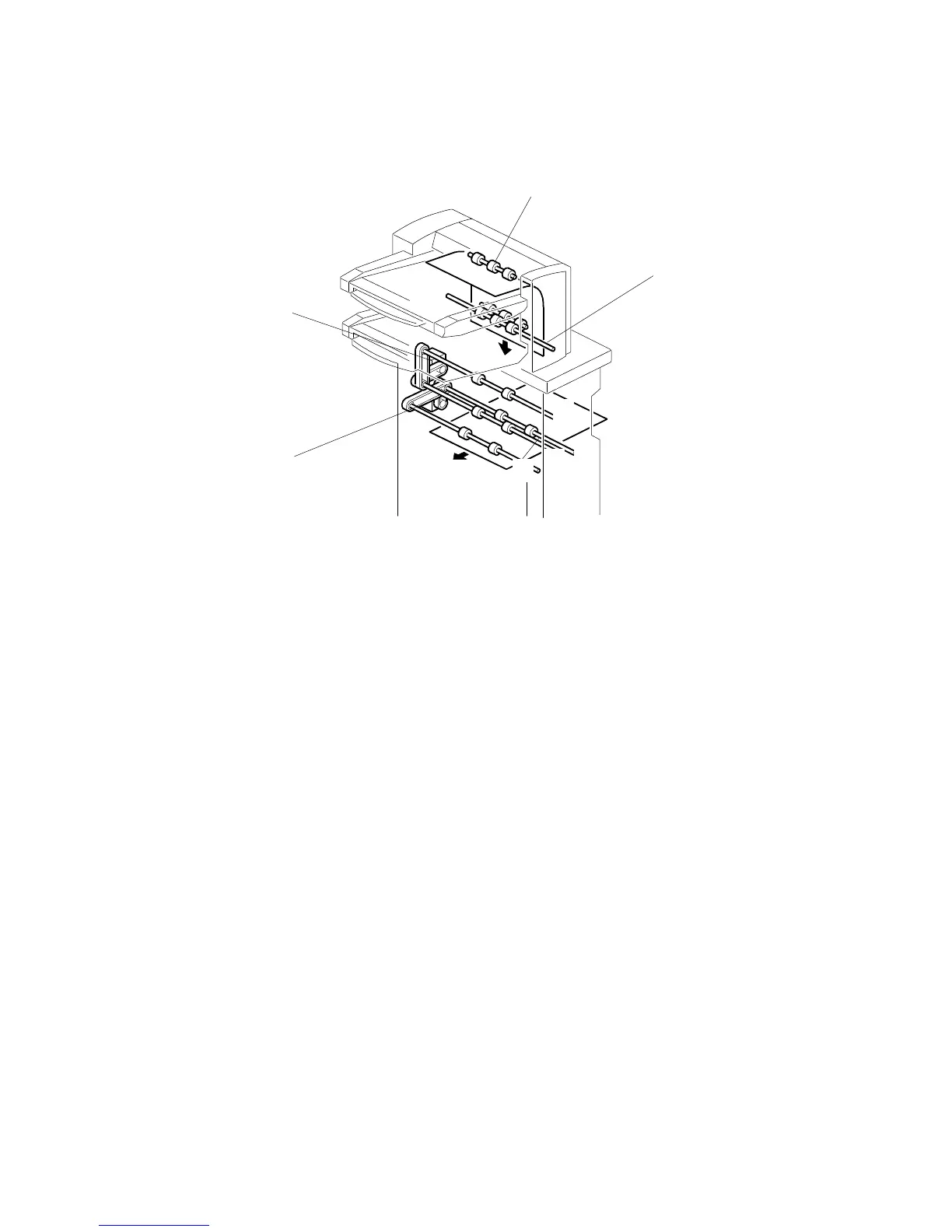

3.2 DRIVE LAYOUT
1. 1st Transport roller
2. 2nd Transport roller
3. Vertical Transport Motor
4. Horizontal Transport Motor
The 1st transport roller [1] (driven by the 1st transport motor) pulls the paper from
the 1st tray and feeds it into the vertical paper path.
The 2nd transport roller [2] (driven by the 2nd transport motor) pulls the paper from
the 2nd tray and feeds it into the vertical path.
The vertical transport motor [3] drives the vertical transport rollers
and
that
feed the sheets into the horizontal feed path.
The horizontal transport motor [4] drives the horizontal transport rollers
and
that feed the covers (and paper passing straight through) out of the cover
interposer tray.
