Paper Handling
D350 30 SM
2.2.9 AIR-ASSISTED FEED MECHANISM

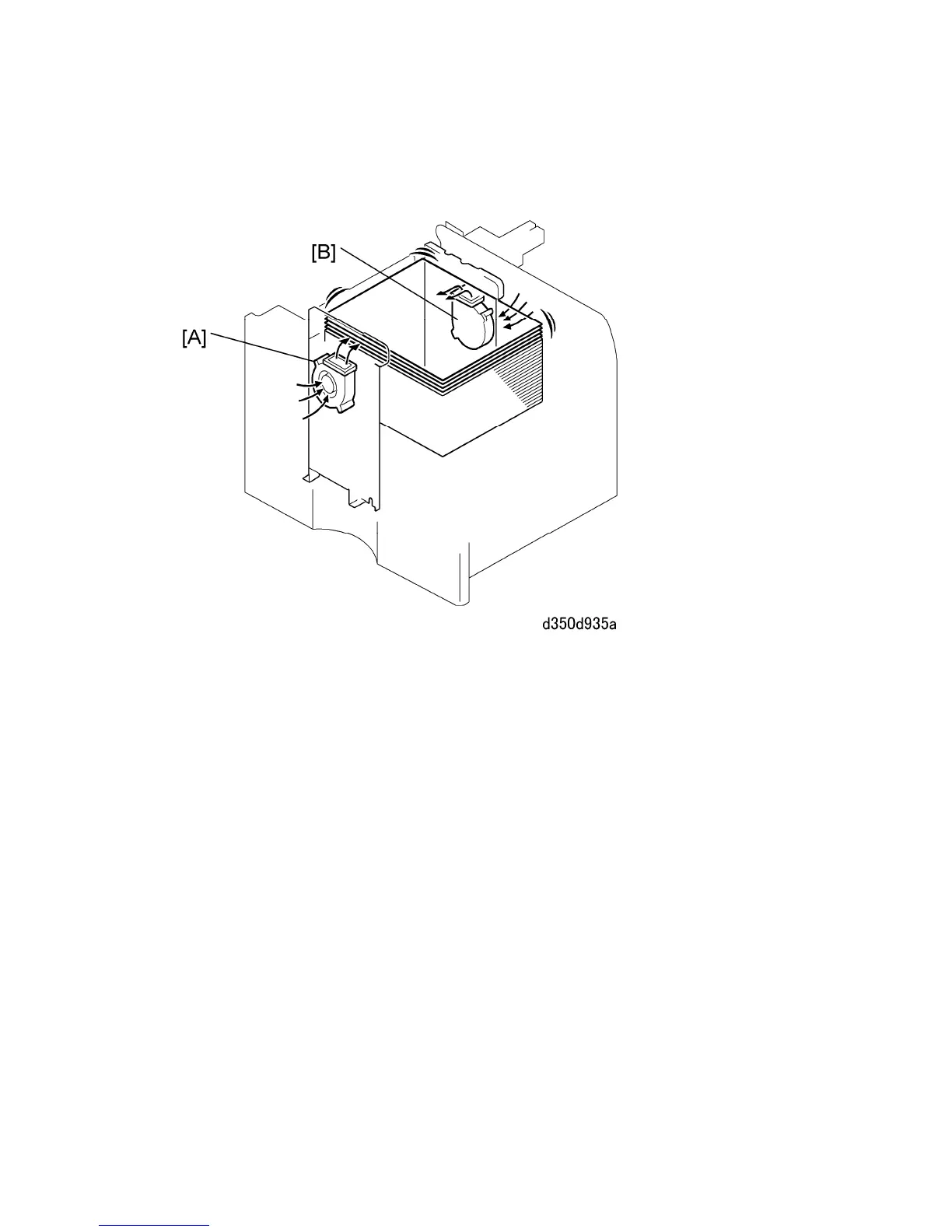

Two air assist fans [A] and [B] comprise the air assist mechanism.
The air flow created by the opposing fans floats the first sheet off the top of the stack. This
assists in the separation of the top sheet from the sheet below and prevents
double-feeding.
This only works when feeding the following paper types: Thick 2, Thick 3, Special 2.
