Image Transfer Unit
SM 3-85 D014/D015/D078/D079
Replacement
Adjustment

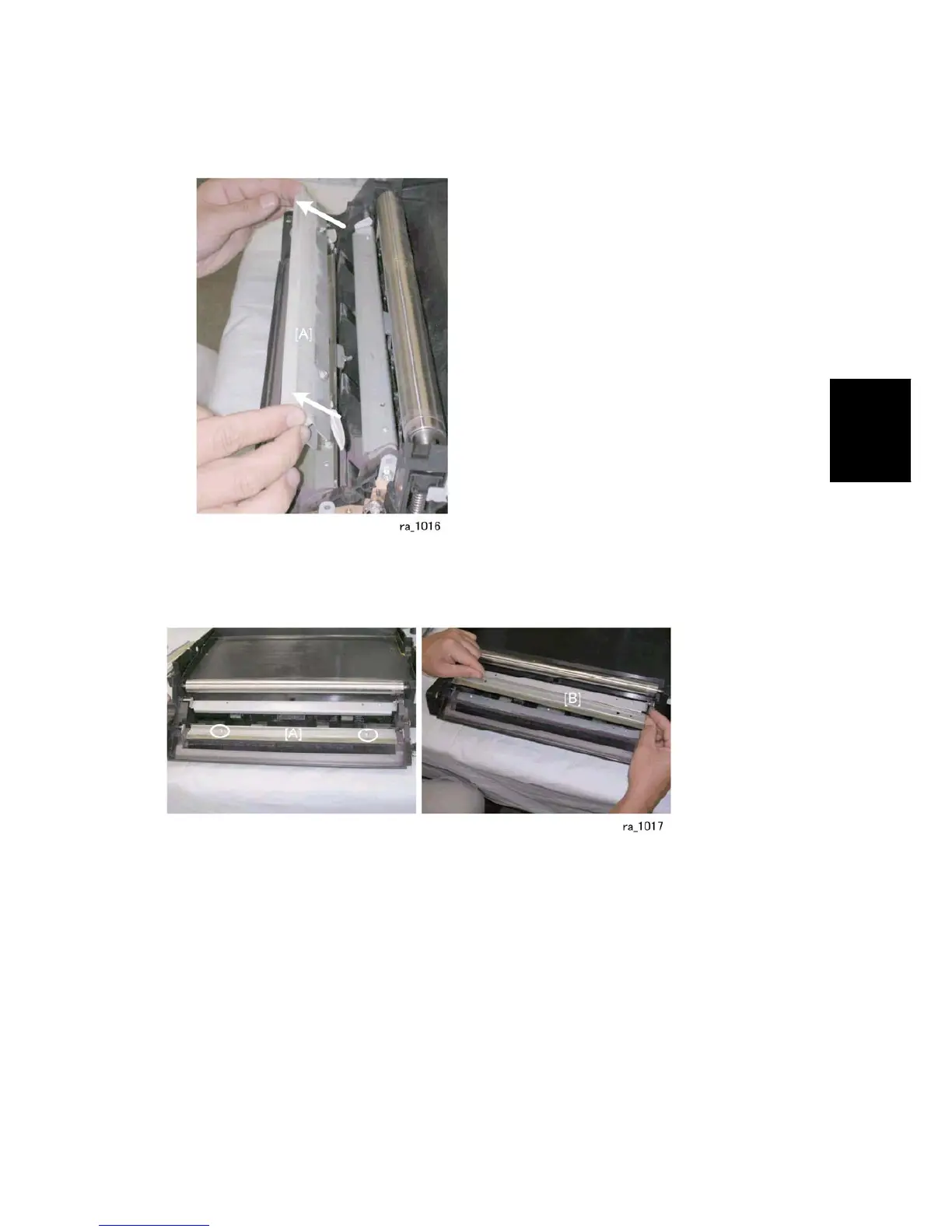

3. Remove the lubricant brush roller [B].
4. Remove the lubricant bar [A]
ITB Cleaning Blade
1. Remove the screws of the ITB cleaning blade [A] ( x2).
2. Remove the ITB cleaning blade [B].
