Ricoh D014 - Paper Path

OVERVIEW
SM 13 B704
Cover
Interposer
Tray
B704

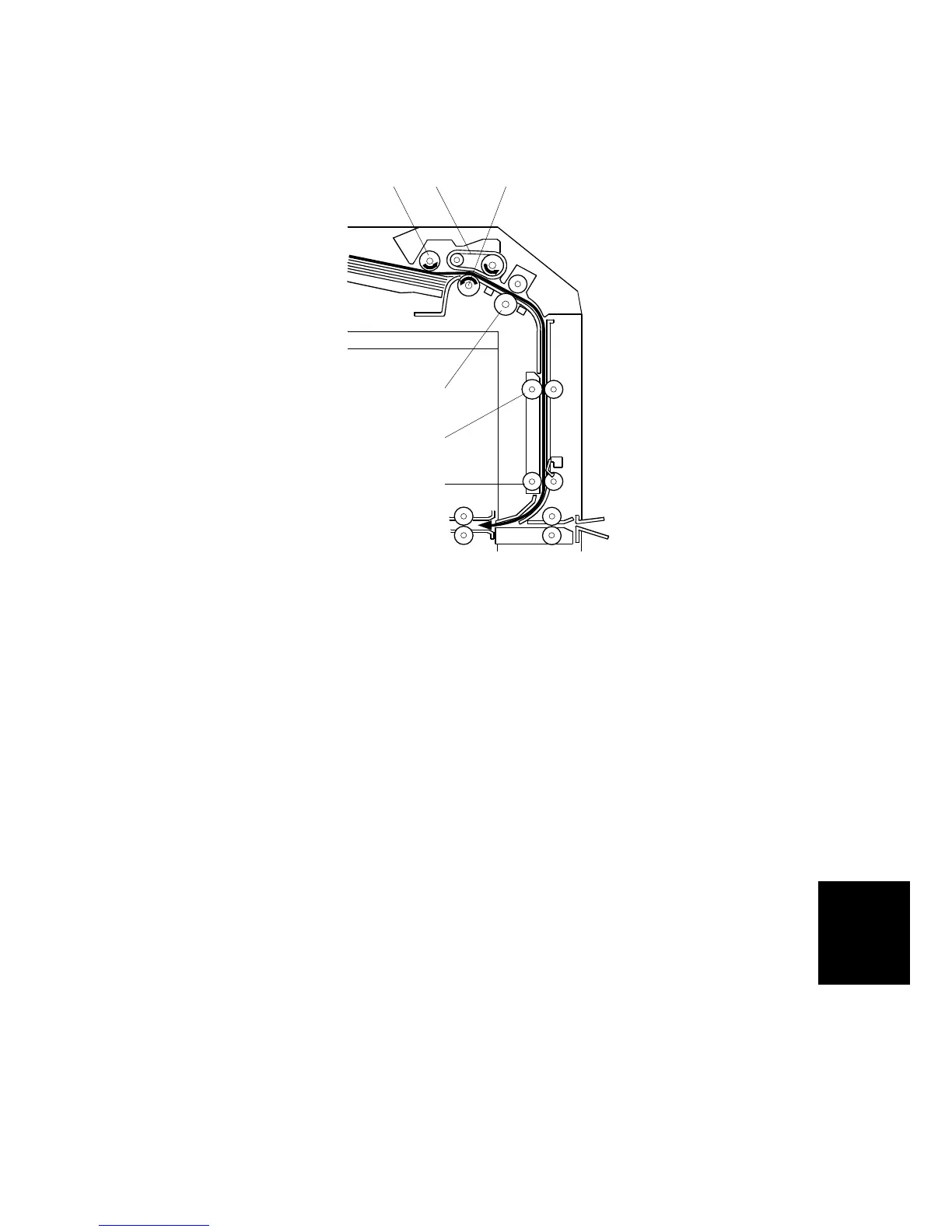

2.1.4 PAPER PATH
1. Pick-up Roller
2. Feed Belt
3. Separation Roller
4. Grip Roller
5. Transport Roller 1
6. Transport Roller 2
The paper feeds from the tray, to the feed belt, then to the grip roller and down into
the paper path to the finisher below.
B470D006.WMF
6
5
4
1 2 3
