Differences Between the D014/D015 & B132/B200
SM D-25 D014/D015/D078/D079
PCU (PHOTOCONDUCTOR UNIT)

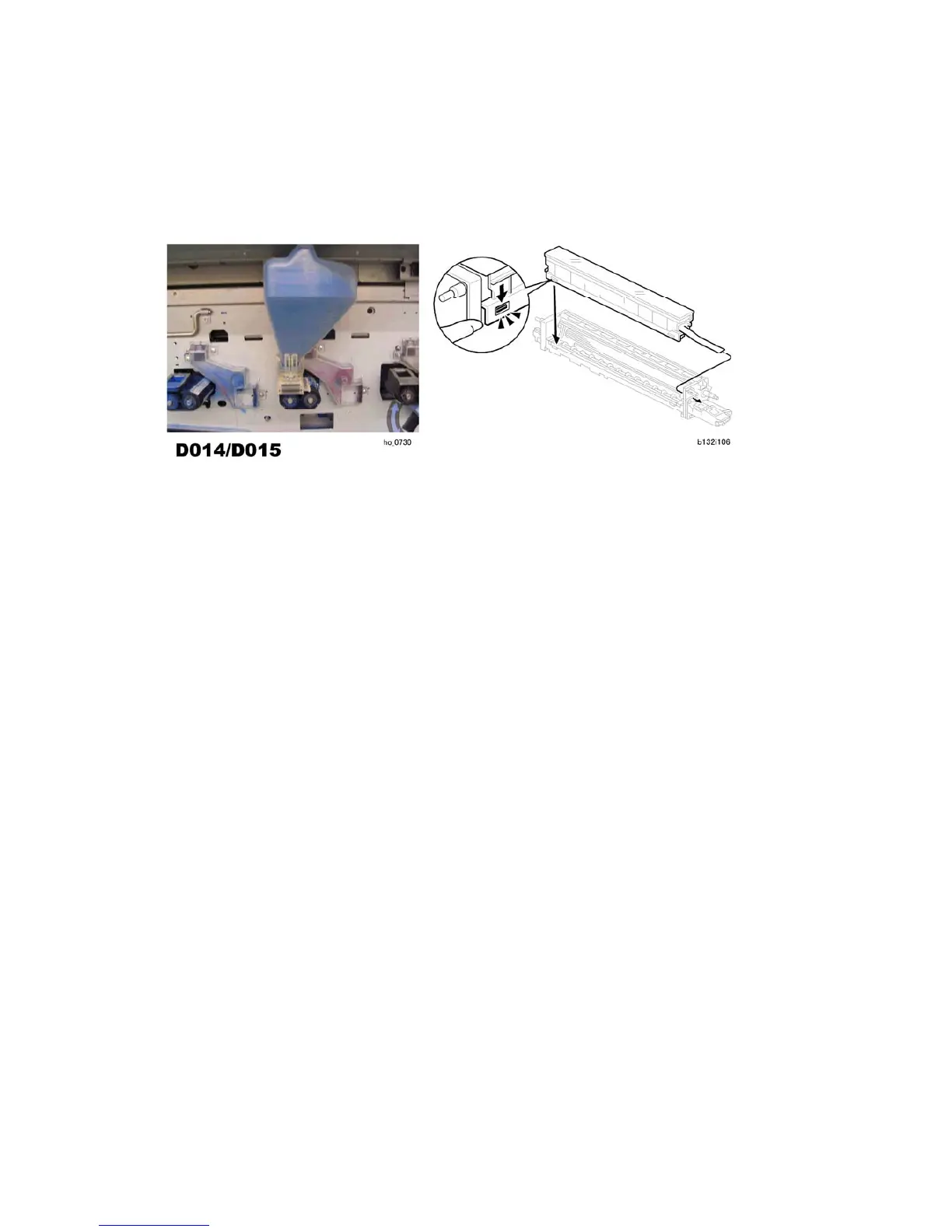

Developer Filling, Replacement
The B132/B200 uses a plastic developer container installed inside the PCU. With the
D014/D015, the developer is poured from a newly designed developer bottle attached to the
front end of a PCU. After filling, the bottle is detached and discarded. With the D014/D015, it
is not necessary to remove the PCUs from the machine in order to fill them with developer.
PCU Design
The PCU units have been redesigned. In the previous model, all the PCUs had the same
structure. In this machine, the K PCU employs the charge corona wire system that is
commonly used in other machines. The other PCUs (Y, C, M) use charge rollers just like the
B132/B200.
B132/B200
