Ricoh D014 - Lubricant Bar

PTR Unit
SM 3-69 D014/D015/D078/D079
Replacement
Adjustment
3.5.5 LUBRICANT BAR
 Work carefully to avoid scratching the paper transfer roller.

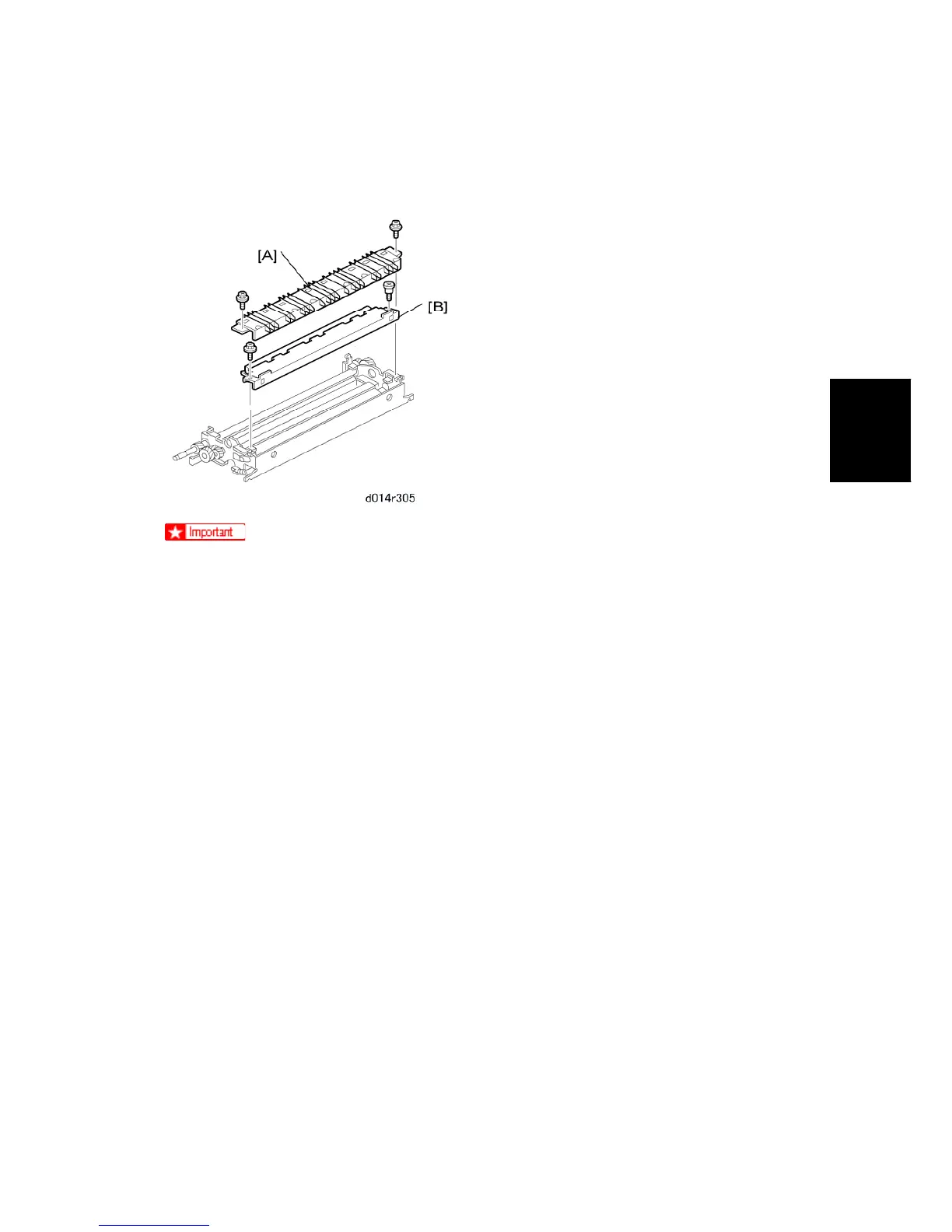

1. Remove:
 PTR Unit
[A] Entrance guide plate ( x2)
[B] Lubrication bar ( x2)
Reinstallation
 Do the forced MUSIC adjustment with SP 2111 001
