Ricoh D014 - 1 St, 2 Nd Transport Motors

REPLACEMENT AND ADJUSTMENT
B835 12 SM
1.5.5 1ST, 2ND TRANSPORT MOTORS
• Tray unit rear cover (

1.1)

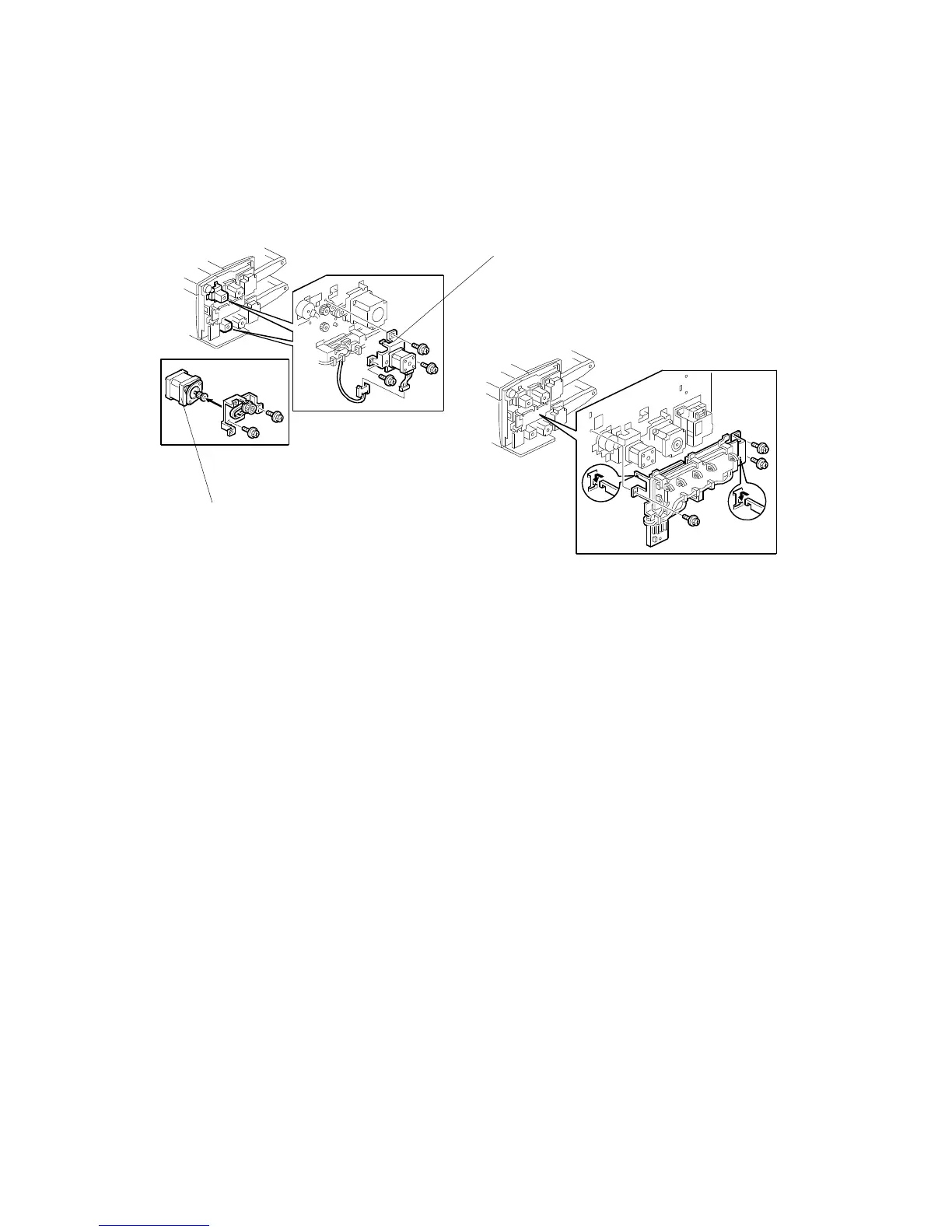

1st Transport Motor
[A] 1st transport motor unit ( x3,  x1)
[B] 1st transport motor (

x2, Timing belt x1)
2nd Transport Motor

Tray unit control board unit (Hooks,

x3,

x9 (Motor x8, CN216))
[C] 2nd transport motor unit (

x3)
[D] 2nd transport motor (

x2, Timing belt x1)
B835R107.WMF
B835R111.WMF

[A], [C]
[B], [D]
